Launch Lead, Series 3, Singlemode, 150m, SCA to SCA, 2m lead, low profile with carabiner clip

SKU #174089
The Series 3 is a light weight unit, measuring only 6” in diameter and 1.25” high, includes a carabiner clip allowing the unit to be easily attached to belts, equipment straps and rack mounts. Available in lengths from 100 to 1000 meters.
AU$416.03 AU$457.63
In Stock / Available for Dispatch
Part Number
174089

The DZE® OTDR Launch Cable is designed to aid in the testing of fiber optic cable when using an OTDR to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Using a DZE® launch cable at the beginning of the fiber under test and a DZE® receive cable at the end of the fiber under test allows the ability to perform loss measurments on entire length of the fiber.

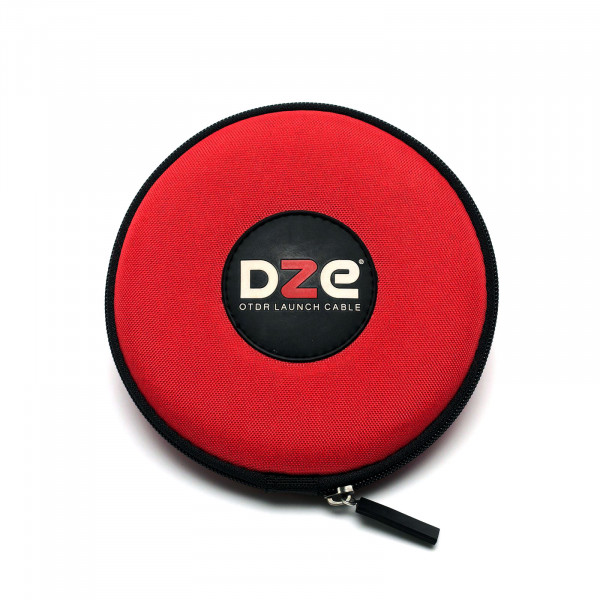

The Series 3 is a light weight unit in a zipper case, which measures only 6.25” in diameter and 1.25” high and includes a carabiner clip allowing the unit to be easily attached to belts, equipment straps and rack mounts. Units are available in any length up to 1000 meters with a choice of a variety of connectors in order to connect to virtually all OTDR and patch panel ports.

Item #174089 - This specific launch lead is fitted with SC-angled connectors on both ends and 150m of singlemode fibre.



General Features / Benefits

  • Use as a Pulse Suppressor, OTDR Launch Box, Delay Line, Product Demonstrations, Training, Calibration

  • Solid internal housing protects spool and leads

  • Leads wrap in the same direction for quick, easy access and storage

  • Carabiner Clip included allows unit to be attached to equipment straps, belts and rack mounts

  • Light weight, easy to carry, small/low profile design portable for field use

  • Measures only 6.25" x 1.25"

  • Available in Singlemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2 and Multimode 50/125 OM3

  • Custom length configurations available


 Applications

  • OTDR Launch Cable/Lead
  • Equipment Calibration

  • System emulation of loss, length, time delay and reflectance



General Specifications


Series 3 DZE® OTDR Launch Cable


Dimensions Diameter 6.25 ", Height 1.25"

Fiber Length (m) 100 to 1000

Fiber Types Singlemode 9/125, Multimode 62.5/125, Multimode 50/125 OM2, Multimode 50/125 OM3

Lead Length 2 Meters, 3mm buffer

Insertion Loss <0.3dB/km typical, <0.5dB/km max

Back Reflection (RL) UPC  <-50dB, APC  <-60dB

Mating Reliability <.2dB

Storage Temp. -40° to +85° C

Operating Temp. -40° to +85° C

Humidity 0 to 95%, non-condensing

Weight 5 oz.

Warranty** 1 year





More Information
Manufacturer Fiber Plus
Product Series DZE Series 3 OTDR Launch Cable
Product Type Launch Leads / Spools
Industry Installers and Contractors (OSP)
Applications NBN (National Broadband Network)
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
