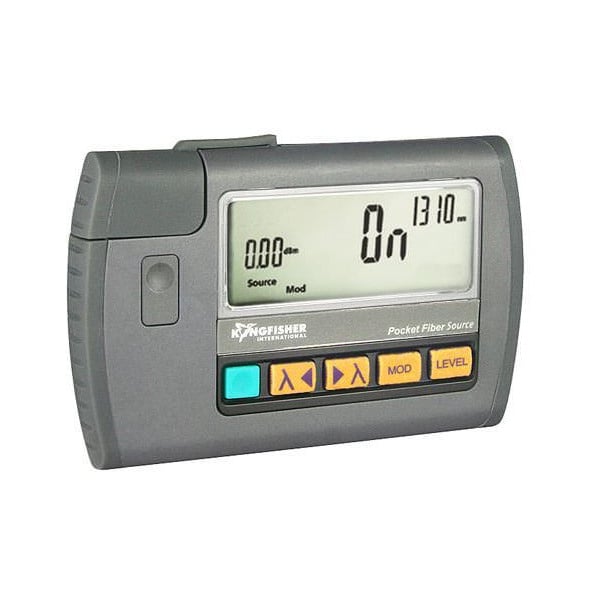

Kingfisher KI9822A-APC Light Source, 1310-1550nm, APC

The small KI9800A Pocket Fibre Source series is ideal for testing singlemode, multimode or POF systems. It provides 1 - 3 wavelengths, high accuracy and simplicity of use.

Item #580300 - Kingfisher's model no. KI9822A-APC is a singlemode light source.

General Features

• Superior re-connection repeatability, < 0.1 dB
• Long alkaline battery life
• Tone generator and Multi-Fiber ID function
• Easy use limited feature mode
• 3 year warranty and calibration cycle
• Rugged, drop-resistant  construction
• Compatible with Autotest power meters
• Made in Australia
• Economical matching Pocket Fiber Meter
• Matching Test Kits

Rugged

Tough construction includes general moisture resistanc, rubber corners and proven stability to withstand drops of over 2m onto a hard surface.

Interchangeable & Metal free Adaptors

Interchangeable optical connectors are dust and drop protected. SC adaptor is supplied. Use of metal free adaptors avoids contamination of connectors in high power systems.

Autotest

When used with an Autotest compatible Power Meter or Loss Test Set, one button automated multi-wavelength loss testing is achieved.

The test tone function can be used with a compatible Power Meter or clip on identifier for fiber detection, continuity testing, fault finding and route location.

When used with the KI9600 Power Meter, mutiple sources can positively identify up to 12 fibers at a time, using the Multi-Fiber ID feature.

Repeatability

Re-connection repeatability is <0.1dB, resulting in exceptional practical source stability.

 Other Source options:

• LED source for multimode testing, with improved repeatability
• VFL laser source for fault finding & continuity testing
• VCSEL laser source for multimode testing
• LED source for POF testing

Please refer to datasheet for more details and full specifications.
