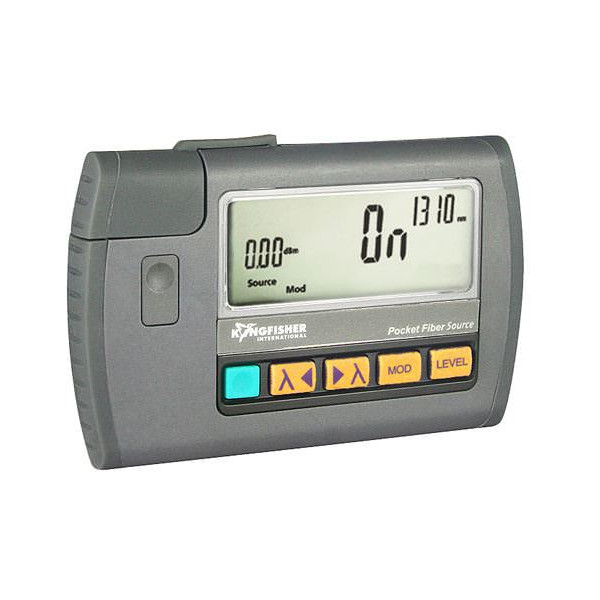

Kingfisher KI9812A Light source 850-1300 nm LED

SKU #KI9812A
Testing multimode or short range single mode systems.
AU$1,919.69 AU$2,111.66
Typically Ships in 5 Business Days
Part Number
KI9812A



Features



  • Rugged shirt-Pocket Size with spring clip
  • Autotest compatibility with other instruments
  • Long Battery Life
  • Low Skill Operation
  • Multi-Fiber ID tone source feature
  • Mode controlled multimode sources
  • Excellent Optical Power Stability
  • Excellent Re-connection Repeatability
  • Large sunlight readable display
  • Interchangeable connectors
  • 3-year Warranty
  • Made in Australia



The KI9800A Series Optical Source is used with an Optical Power Meter for loss testing on single mode, multimode or plastic optical fiber (POF) cable.

When used with an Autotest compatible Power Meter or Loss Test Set, one button automated multi-wavelength loss testing is achieved.

The test tone function can be used with a compatible Power Meter or clip on identifier for fiber detection, continuity testing, fault finding and route location.

When used with a KI9600 Power Meter, multiple sources can positively identify up to 12 fibers at a time, using the Multi-Fiber ID feature.

Re-connection repeatability is <0.1dB, resulting in exceptional practical source stability.

Tough construction includes general moisture resistance, rubber corners and proven ability to withstand drops of over 2 meters onto a hard surface. It meets the general requirements of MIL PRF 28800F Class 2.

850/1300nm LED sources are ideal for multimode testing, in combination with the KI9600 power meters. They meet the Encircled Flux (EF) standard compliance, and provide the most consistent and reliable testing results.



Specification





850/1300nm LED

Comments

Power (dBm) @Fiber Type (µm)

SMF

-32



50µm

-22



62.5µm

-20



Short Term Stability (dB)

0.01

For 15min , typ ± Δ2°C, after warm up

Stability over Temp (dB)

0.35

Typical, over temperature

λ nm/°C

0.4

Typical

Mode Controlled Source

Mode Controlled1

50/125 Compliant: IEC 61280-4-1 {Ed.1.0}, TIA 526-14A & TIA TSB-178

Reconnection Repeatability dB

0.05

95% confidence

Modulation

270Hz, 1kHz, 2kHz ± 2%



Multi-fiber ID

Up to 12 fibers



Battery life

35 hours in Autotest, typical



Size

124 x 81 x 25mm



Weight

0.15kg/0.33lb.



Operating / Storage

-15 to 55°C/-25 to 70°C



Power

2 Alkaline AAA cells.

Selectable auto-off, low battery indicator







STANDARD ACCESSORIES

·         1 SC connector adaptor

·         50 & 62.5µm fiber mandrel wraps for LED source

·         Quick guide

·         Soft carry pouch (OPT156)

·         Wrist strap



Other interchangeable connector adaptors are available



More Information
Manufacturer Kingfisher
Product Series Kingfisher 9800A Series Pocket Fiber Source
Product Type Light Sources
Industry Installers and Contractors (OSP)
Applications NBN (National Broadband Network)
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
