Kingfisher KI2709XL-SI5 LTS 660 nm LED, Si 5mm

Features

• Multi mode 600 nm LED, Si 5mm
• Easy to use, slim, rugged & versatile
• Excellent source stability
• Unique VisiTest VFL option boosts test productivity
• Large clear LCD is sunlight readable & backlit
• Large memory with Text Tag & time stamp
• One button memory dump to USB key
• KITS™ reporting software for acquisition and reporting
• Autotest power meter
• 1 % accuracy & 24 calibrated λ, ISO 17025 traceable
• Interchangeable connectors with dust cap & tilt bail
• Multi-Fiber ID Test tone generator / detector
• Long alkaline battery life with micro USB external power / charger
• 3 Year warranty and calibration cycle
• Made in Australia

Test Applications

• Plastic optical fiber (POF, PCS, HCS, PMMI)
• Optical Power testing
• Optical Loss testing and reporting
• Optical continuity & tone testing
• Standards compliant cable certification

Description

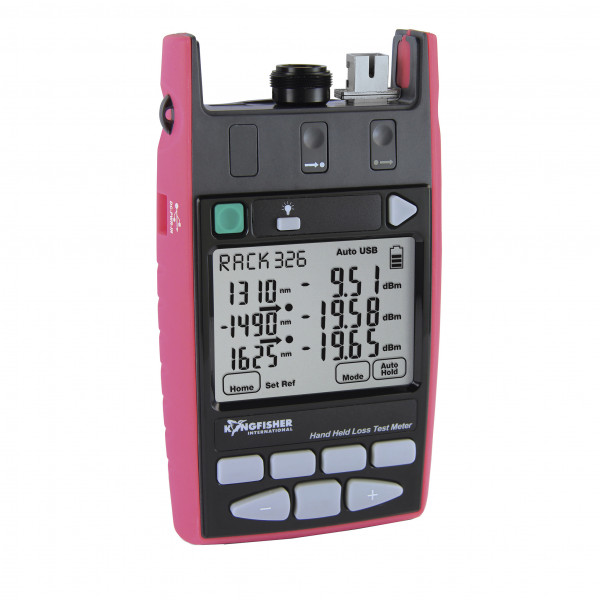

The Kingfisher 2700-Series Hand Held Loss Test Meter is a premium instrument used to test power, loss, continuity and faults on fiber optic systems. In a small package, it provides a variety of powerful solutions to improving test flexibility and productivity.

The KI 2300 / 2700 series Optical Loss Test Set combines an Optical Power Meter & Light Source with many useful features. It is a single direction loss test set which measures and displays loss at multiple wavelengths. Bi-directional testing is supported by PC reporting software.

Robust, versatile and easy to use, the KI2700 series general purpose instrument can also incorporate VisiTester, which conveniently mixes a VFL laser with the test signal, making high fiber count testing much easier. Alternatively, the KI2300 series provides a Zero Warm-Up Source for ultimate test accuracy and speed of deployment.
