Kingfisher KI-TK074 Simple Test Kit SM & MM Contractor 2000-Series - InGaAs

Typical Applications

• Optical power measurement from -70 to +15 dBm, calibrations at 24 wavelengths.
• Optical loss testing on single mode fiber 1310 / 1550 nm with a range of 70 dB, standards compliant.
• Optical loss testing on multimode fiber 850 / 1300 nm with a range of 50 dB, standards compliant.
• Fast and easy loss testing automation & reporting with AutoTest and KITS™ software, with pass/fail and custom reporting.
• 12 fiber Multi-Fiber ID continuity / tone source & detection up to 50 dB loss using tone features on the source and meter.
• Optional Visual fault locators either built in to power meter or light source.
• Optional Adjustable Optical Attenuator for margin testing etc.
• Low to medium test volume on both single mode and multimode systems, with excellent operational flexibility.
• Kit and options generally meet current regulations & standards for safety & test methods.

Equipment Details

See brochures for specifications, alternative connectors, accessories and other instrument configurations.
We gladly adjust kit contents to meet exact needs. Please contact us.

Source

850 / 1300 / 1310 / 1550 nm AutoTest LED / Laser Source KI2824.
With standard accessories. eg: canvas pouch, SC optical connectors, quick reference guide, user manual, calibration certificates, conformance certificate.
CD with user manuals, useful application notes and standard compliant KITS™ reporting software.

To add VisiTester VFL capability to the source, change to a KI 28624 / KI28634

Meter

Optical Power Meter with Ge detector, AutoTest, 24 calibration wavelengths KI2600-Ge.
With standard accessories. eg: canvas pouch, SC optical connector, quick reference guide, user manual, calibration certificates, conformance certificate.
CD with user manuals, useful application notes and standard compliant KITS™ reporting software, USB cable.

To add a VFL to the power meter, change to a KI2601-Ge

Optional Adjustable Optical Attenuator

Optional Adjustable Optical Attenuator e.g. OPT716-xx as required (exact part number is on the brochure).
Very handy and inexpensive option for margin testing and other uses.

Connector & Battery Summary

This kit is equipped for SC / PC connectors. The power meter also accepts SC/APC connectors.
Alternatively, to change the source single mode output to any APC connectors, change the part to KI2824-APC.
All instruments share the same style of versatile and practical interchangeable connector adaptors, and any number of additional adaptors can be ordered.
Optional adaptor styles include: Universal 2.5 & 1.25 mm, LC, FC, ST, E2000, MU, SMA, F3000, D4, LSA.

Both instruments use 2 x AA batteries with selectable re-charging via micro USB port.
Battery life is 1000 hours for the meter and and 80 hours for the source.

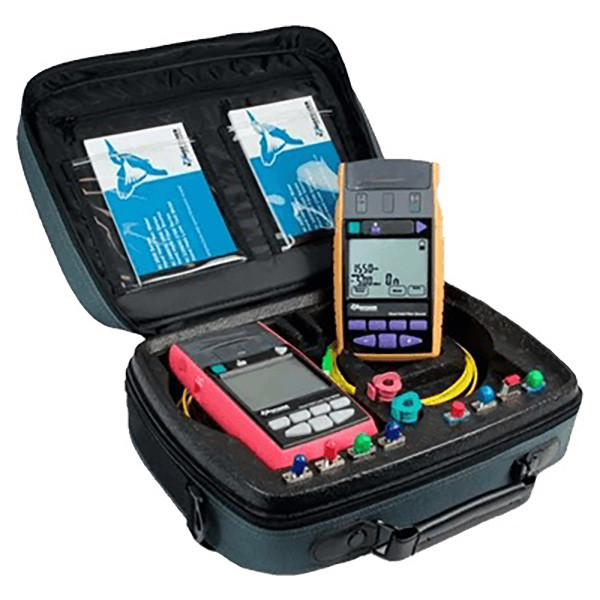

Case Contents (OPT153)

• Highly cushioned and convenient carry case, sturdily constructed of durable custom molded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap.
• Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation.
• Case can accommodate any two KI2000 or KI7000 style instruments.

Quick Order Summary for standard KI-TK074

Each kit contains:

• KI2824 Optical Light Source & standard accessories
• KI2600-Ge Optical Power Meter & standard accessories
• OPT153 Carry case and standard contents
