Kingfisher KI-TK072 Test Kit for SM & MM Contractor 2000-Series - InGaAs

Source

850 / 1300 / 1310 / 1550 nm AutoTest LED / Laser Source KI2824.
With standard accessories, eg: canvas pouch, SC optical connectors, user manual, quick reference guide, test mandrels for 50u & 62.5u fiber, calibration certificates, conformance certificate.
CD with user manuals, useful application notes and standards compliant KITS™ reporting software.

To add VisiTester VFL capability to the source, change to a KI 28624 / KI28634

Meter

Optical Power Meter with Ge detector, AutoTest, 24 calibration wavelengths, KI2600-Ge.
With standard accessories, eg: canvas pouch, SC optical connectors, user manual, quick reference guide, calibration certificates, conformance certificate.
CD with user manuals, useful application notes and standards compliant KITS™ reporting software, USB cable.

To add a VFL to the power meter, change to a KI2601-Ge

Connector inspection microscope

Fibersafe connector microscope x200 KI6610 with Accessories: 2.5 mm universal PC polish connector adaptor, batteries, user manual, conformance certificate. x400 model available.
Popular optional accessory: OPT680: adaptors for 2.5mm APC, 1.25 mm PC / APC, industry standard adaptor ring.

Optional Visual Fault Locator

There are 3 ways to add VFL functionality to this kit: add VisiTester to the light source, or add a VFL to the power meter, or add a pen-style VFL.

Optional visible fault locator pen e.g. KI6354 etc as required.
If you would like a visible fault locator pen with you kit, please select the right visible fault locator and order separately.
With accessories: batteries, user manual.

Optional Adjustable Optical Attenuator

Optional Adjustable Optical Attenuator e.g. OPT716-xx as required (exact part number is on the brochure).
Very handy and inexpensive option for margin testing and other uses.

Connector & Battery Summary

This kit is equipped for SC / PC connectors. The power meter also accepts SC/APC connectors.
Alternatively, to change to any single mode APC connectors, change the source to KI2824-APC and add an APC adaptor for the microscope.
The source & meter share the same style of versatile and practical interchangeable connector adaptors, and any number of additional adaptors can be ordered.
Optional source and meter adaptor styles include: Universal 2.5 & 1.25 mm, LC, FC, ST, E2000, MU, SMA, F3000, D4, LSA.
Optional microscope adaptors include simplex / duplex, PC / APC: 1.25 / 2.5 mm universal, MPO, E2000, and adaptors for some other scope manufacturers.

Source and meter use 2 x AA batteries with selectable re-charging via micro USB port. Battery life is 1000 hours for the meter and and 80 hours for the source.
The microscope uses 1 x AAA battery with long life and external micro USB power. An optional video adaptor can capture images on a computer via a USB port.

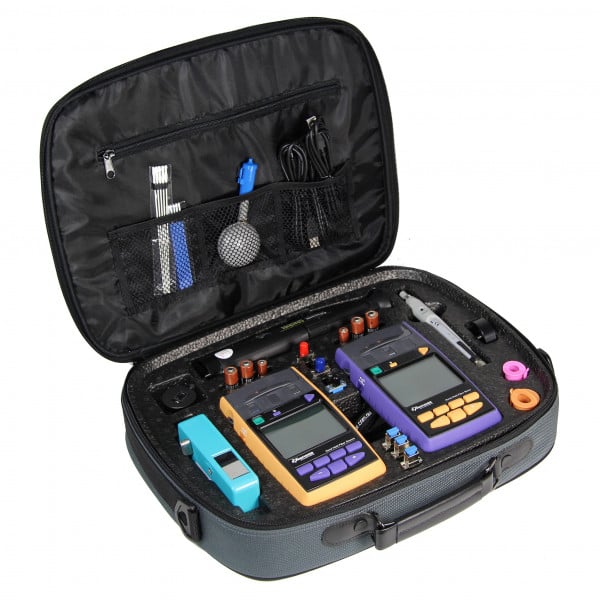

Case Contents (OPT154B)

• Highly cushioned and convenient carry case, sturdily constructed of durable custom molded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap.
• Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains power pack, two mandrel wraps.
• Case can accommodate any  two KI2000 or KI7000 style instruments.
• Cleaning materials
  Cletop-S type A cartridge connector endface cleaner.
  "stick" type connector endface cleaners 2.5 mm, Qty 5.
  "stick" type connector endface cleaners 1.25 mm, Qty 5.
  Puffer brush to clean microscope and optical power meter interface.
