Kingfisher KI-TK071A Test Kit MPO/MTP SM & MM 2000 - Ge

Typical applications

• Low to modest volume clean, inspect & test on MM & SM systems, MPO / MTP™, LC, SC. Inexpensive with good accuracy.
• Customer supplies an MPO - LC/SC breakout cable.
• Power at 28 calibrated λ, -40 to +15 dBm range.
• Loss on SM fiber at 1310 / 1550 nm, 40 dB range.
• Loss on MM fiber 850 / 1300 nm, 18 dB range, EF compliant.
• Loss test automation & reporting with Autotest and KITS™ software.
• 12 fiber Multi-Fiber ID continuity / tone.
• Connector end face inspection microscope x200.
• Connector cleaning tools & materials.
• Generally meets safety regulations & standards based test procedures.

Equipment details

See brochures for specifications, alternative instruments & options.
Other instruments that could be added: VFL Pen, microscope video camera, or change to a video microscope.
We gladly adjust kits to meet your exact needs.
We also have Standards Compliant Test Quality MPO leads, or general test leads.

Source

850 / 1300 nm LED, 1310 / 1550 nm laser KI2824.
With standard accessories, eg: SC connectors, user manual, quick reference guide, test mandrels, calibration certificates, conformance certificate, USB cable.
LC Connector, 2 x OPT076

Meter

With large rea Ge detector, 10 calibrated λ, KI2600XL-Ge5.
This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
Standard accessories: user manual, quick reference guide, calibration certificates, conformance certificate, USB cable.
MPO  connector adaptor, OPT227
1.25 mm Universal connector adapter, OPT224
SC connector adapter, OPT201

Connector inspection microscope

x200 KI6610
Standard accessories: 2.5 mm universal PC polish connector adaptor, batteries, user manual, conformance certificate.
MPO/MTP™ connector adapter OPT677
1.25mm Universal PC polish connector connector adapter OPT682

Connector & battery summary

This kit has MPO, LC & SC connectors, the power meter also accepts APC polish connectors. Additional interchangeable connector adapters can be ordered.
Source and meter use 2 x AA batteries with selectable re-charging via micro USB port. Minimum run time is 80 hours for the source.
The microscope uses 1 x AAA battery with 300 hr life and external micro USB power. Rechargeable batteries must be removed for charging.

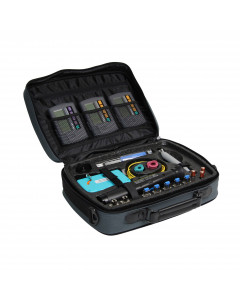

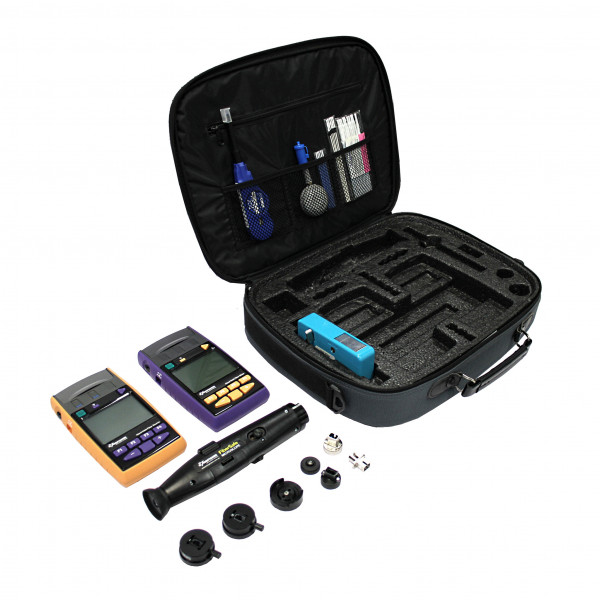

Case & contents

• 1x OPT154B - Highly cushioned and convenient carry case, sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap.
• The semi-rigid case construction is comfortable to use, avoids damaging other objects, and it's compartment layout helps avoid leaving items on-site.
• Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains power pack, two mandrel wraps.
• This case can accommodate any two KI2000 style instruments.
• Cleaning materials
  Cletop-S style A cartridge connector end-face cleaner.
  "stick" type connector end-face cleaners 2.5 mm, Qty 5.
  "stick" type connector end-face cleaners 1.25 mm, Qty 5.
  Puffer brush to clean microscope and optical power meter interface.
