Kingfisher KI-TK056 Compact Test Kit SM 9000-Series

Typical applications

• Low to modest test volume on SM systems.
• Power at 9 calibrated λ, -60 to +5 dBm range.
• Loss on SM fiber at 1310/1550 nm, 60 dB range.
• Software for cable loss reporting (manual data entry).
• 12 fiber Multi-Fiber ID continuity / tone, 40 dB range.
• Generally meets safety regulations & standards based test procedures.

Equipment details

See brochures for specifications, alternative instruments, connectors & options.
Other instruments that could be added: in-line adjustable attenuator.
We gladly adjust kits to meet your exact needs.

Source

1310 / 1550 nm laser KI9822A.
Standard accessories: SC connector, quick reference guide, conformance certificate.

Meter

InGaAs detector, 9 calibration λ, KI9600A-InGaAs.
Standard accessories: SC connector, quick reference guide, calibration certificate, conformance certificate.

Connector & battery summary

This kit has SC connectors, the power meter also accepts APC polish connectors. Additional interchangeable connector adapters can be ordered.
Both source & meter use 2 x AAA alkaline batteries. minimum run time is 40 hours for the source.
Rechargeable batteries must be removed for charging.

Case

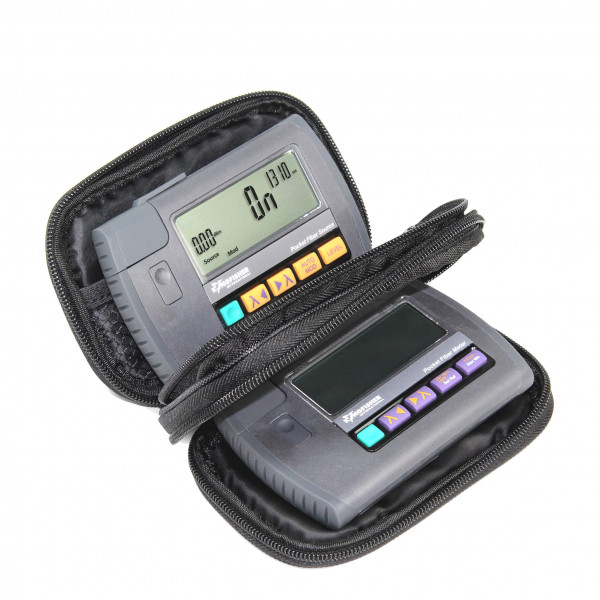

2x OPT156 Pocket padded pouch. Splash resistant cloth outer covering with zipper, carry strap.
Case has space for additional (not supplied): batteries, connector adaptors, additional documentation.
Each case can accommodate any two KI9000 style instruments.
