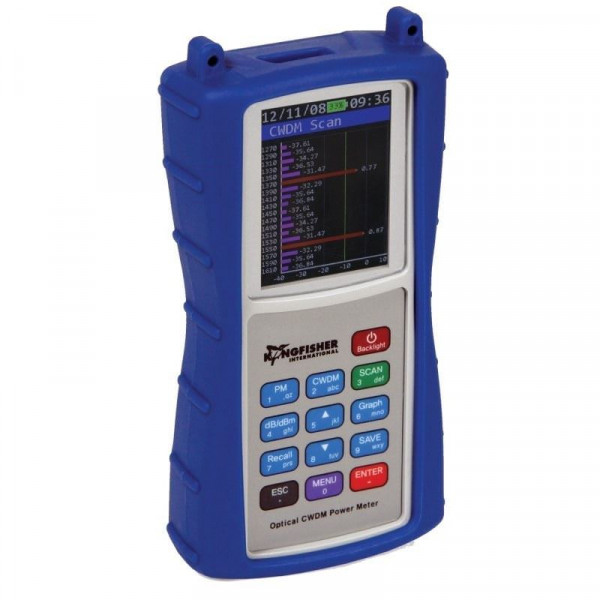

Kingfisher KI6501 Optical CWDM Power Meter

SKU #KI6501
Easy and economical handheld CWDM Power Meter for testing multi-λ singlemode fibre optic systems.
AU$4,687.19 AU$5,155.91
Typically Ships in 5 Business Days
Part Number
KI6501

KI6501 is an easy and economical handheld CWDM Power Meter for testing multi-λ single mode fiber optic systems.

It scans and stores the absolute or relative power levels of all 18 CWDM λ in 0.8 seconds. Test data can be viewed in graphical or numerical form, and reference values can be stored for easy loss testing.

  • Compact, rugged & light weight
  • Simple to use
  • Fast measurement speed
  • Scan range of 18 calibrated wavelengths
  • Larger, sunlight readable, backlit colour display
  • Simultaneous 9 wavelengths loss display
  • Tabular and graphical display modes
  • Internal memory for 1000 test records
  • Test data transfer via USB port
  • Programmable auto shut off
  • External power / charging via mini USB port
  • LED indicator battery charging status
  • 12 months warranty

Please refer to the datasheet for more info and full specifications.

More Information
Manufacturer Kingfisher
Product Series Kingfisher 6501 Compact CWDM Channel Power Meter
Product Type Optical Power Meters
Applications CWDM / DWDM, Multiplexed Transmission Testing
Standard Package Contains
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
