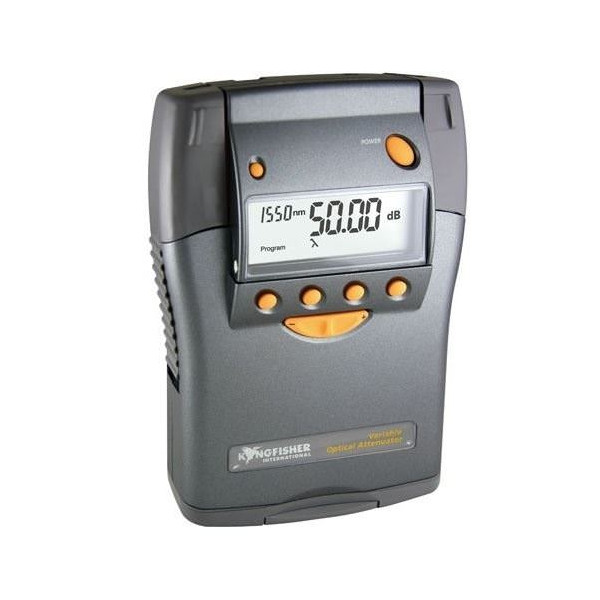

Kingfisher KI7020B Variable Optical Attenuator 850-1300 nm, 50/125

SKU #KI7020B
Multi-mode 850-1300 nm, 50/125 hand held Fibre Optic Variable Attenuator with computer interface.
AU$6,456.74 AU$7,102.41
Typically Ships in 5 Business Days
Part Number
KI7020B

KI 7010-Series Variable Optical Attenuator Overview

The KI 7010 Series hand held Fiber Optic Variable Attenuator is a precision handheld instrument commonly used for testing optical system margin and linearity. Superior specifications, high productivity and remote control capability also make this a genuine laboratory grade instrument.

  • Available in SM, MM & POF Versions
  • Easy to use, accurate & productive instrument
  • Excellent linearity and absolute loss accuracy
  • ISO17025 traceable calibration ILAC / NATA / ISO17025 Traceable Calibration
  • Power handling to >+30 dBm / 1000 miliwatts
  • Broadband, flat λ response
  • Low minimum insertion loss
  • Excellent ORL & PMD characteristics
  • Supplied with metal free SC, ST, LC interchangeable connectors
  • Remote control (Labwindows) software
  • Set attenuation is unaffected by power on/off status
  • Very long battery life
More Information
Manufacturer Kingfisher
Product Series Kingfisher 7010 Series Fiber Test Attenuator
Product Type Attenuators
Connector Interface 2.5 mm Universal (FC/SC/ST), Interchangeable
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Mining, Off-shore and Remote, Transportation, Utilities
Applications Long-Range Fiber Testing (High-Power Systems), Multimode Fiber Testing (MM)
Operating Temp. (Min) -15°C
Operating Temp. (Max) 55°C
Recommended Calibration Interval 3 Years
Standard Package Contains
  • Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046) x 2
  • Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body (OPT076) x 2
  • Hybrid Adaptor, Ceramic Sleeve, SC/ST (OPT040) x 2
  • RS232 Cable x 1
  • Carry Pouch x 1
  • Carry strap x 1
  • Leather protective holster x 1
  • C cell batteries x 2
  • AA-to-C size battery converter x 2
  • ILAC/ NATA Traceable Calibration certificate x 1
  • QA certificate x 1
  • Operation manual x 1
  • Quick Reference Guide x 1
  • Attenuator control software (Downloadable free from website)
Warranty 3 Years
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
