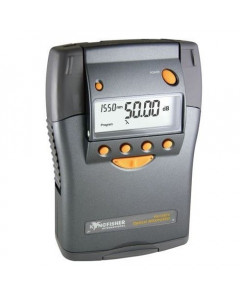

Kingfisher KI7010B-APC Variable Optical Attenuator 1310-1550 nm APC

SKU #KI7010B-APC
SMF 1310-1550 nm hand held Fibre Optic Variable Attenuator with computer interface and APC connector.
AU$6,296.22 AU$6,925.84
Typically Ships in 5 Business Days
Part Number
KI7010B-APC

The KI 7010 Series hand held Fiber Optic Variable Attenuator is a precision handheld instrument commonly used for testing optical system margin. Superior specifications, high productivity and remote control capability also make this a genuine laboratory instrument.

  • Easy to use & productive instrument
  • Single mode calibrations at 1310, 1490, 1550, 1625 nm
  • Multimode calibrations at 850, 1300 nm
  • Superior absolute accuracy, power handling, ORL & PMD
  • Low minimum insertion loss
  • Supplied with metal free SC, ST, LC interchangeable connectors
  • Remote control software
More Information
Manufacturer Kingfisher
Barcode 9354820000643
Product Series Kingfisher 7010 Series Fiber Test Attenuator
Product Type Attenuators
Mode Singlemode (SM)
Connector Interface FC APC, LC APC, Interchangeable
Industry Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Mining, Off-shore and Remote, Transportation, Utilities
Applications Long-Range Fiber Testing (High-Power Systems), Single Mode Fiber Testing (SM), CWDM / DWDM, Multiplexed Transmission Testing
Operating Temp. (Min) -15°C
Operating Temp. (Max) 55°C
Recommended Calibration Interval 3 Years
Standard Package Contains
  • Hybrid Adaptor, Ceramic Sleeve, SC/SC (OPT046) x 2
  • Hybrid Adaptor, Ceramic Sleeve, SC/LC, metal body (OPT076) x 2
  • Hybrid Adaptor, Ceramic Sleeve, SC/ST (OPT040) x 2
  • RS232 Cable x 1
  • Carry Pouch x 1
  • Carry strap x 1
  • Leather protective holster x 1
  • C cell batteries x 2
  • AA-to-C size battery converter x 2
  • ILAC/ NATA Traceable Calibration certificate x 1
  • QA certificate x 1
  • Operation manual x 1
  • Quick Reference Guide x 1
  • Attenuator control software (Downloadable free from website)
Warranty 3 Years
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
