OST Industrial Multi-Gigabit Switch 1x SFP/SFP+ 4x RJ-45 2X Multigig 2X 10/100/1000
SKU #9668-1-14-2Z
Omnitron RuggedNet 10GMGPoE+/Mi, 1x SFP/SFP+, 4x RJ-45 PoE/PSE, 5 Year Warranty - 5 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty
Typically Ships in 15 to 20 Business Days
Part Number
9668-1-14-2Z
Omnitron Systems RuggedNet 10GMGPoE+/Mi, 1x SFP/SFP+, 4x RJ-45 PoE/PSE, 5 Year Warranty - 5 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty

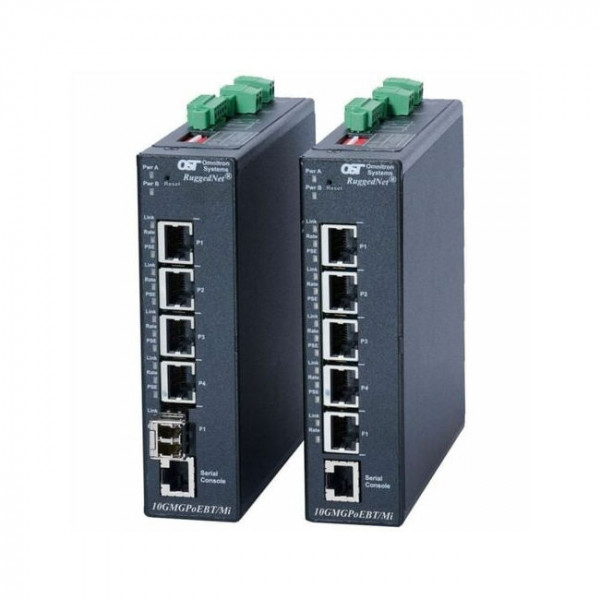

The RuggedNet 10GMG/Mi are managed industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 downlink/access ports.
The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps.
The RuggedNet switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.
An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with dual DC input power.
Features
- DC power source for required power supply to ensure maximum efficiency
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organised
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 5 networking ports
- Effectively increases available bandwidth on your network
Guides & Documents
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet PoE+ |
| 2 x Gigabit Ethernet PoE+ | |
| 1 x 10 Gigabit Ethernet Network |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 9668-1-14-2Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 9668-1-14-2Z |
| Product Name | RuggedNet 10GMGPoE+/Mi, 1x SFP/SFP+, 4x RJ-45 PoE/PSE, 5 Year Warranty |
| Package Type | Retail |
| Product Line | RuggedNet |
| Product Series | 10GMGPoEBT/Si |
| Brand Name | Omnitron Systems |
Physical Characteristics
| Weight (Approximate) | 1.50 lb |
| Form Factor | Rack-mountable |
| DIN Rail Mountable | |
| Wall Mountable | |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
Power Description
| Input Voltage | 57 V DC |
| 46 V DC | |
| 57 V DC | |
| 46 V DC | |
| Power Source | PoE+ |
| DC | |
| PoE (RJ-45) Port | Yes |
Miscellaneous
| Application/Usage | Industrial |
| Network | |
| Package Contents |
|
| Certifications & Standards | IEEE 802.3, 802.3bz, UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark EN 55032/24 CE Emissions/Immunity CISPR 32, FCC 47 Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models), IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models), IEC 61000-4-6 CS: Signal: 3 Vrms, IEC 61000-4-8 ( Magnetic Field) 30 A/m, IEC 61000-4-11 (Voltage Dips, interrupts) IP20 Protection |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046214 |
| Product Series | Omnitron Systems RuggedNet Industrial Ethernet Switches |
| Product Type | Ethernet Switches |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
