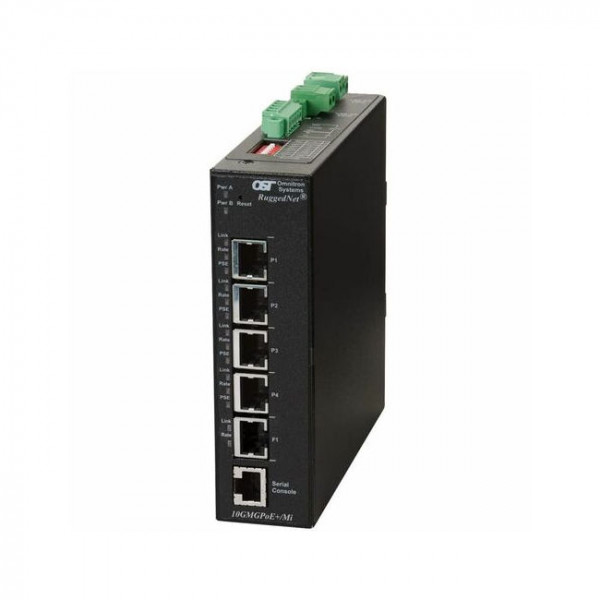

OST Industrial Multi-Gigabit Switch RJ-45 2X Multigig 2X 10/100/1000 AC
SKU #9666-1-14-2Z
Omnitron RuggedNet 10GMGPoE+/Mi, 1x RJ-45, 4x RJ-45 PoE/PSE, 5 Year Warranty - 5 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty
Typically Ships in 15 to 20 Business Days
Part Number
9666-1-14-2Z
Omnitron Systems RuggedNet 10GMGPoE+/Mi, 1x RJ-45, 4x RJ-45 PoE/PSE, 5 Year Warranty - 5 Ports - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-T, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty
The RuggedNet 10GMG/Mi are managed industrial multi-gigabit Ethernet switches featuring one 1/10G SFP/SFP+ or multi-gigabit/multi-rate RJ-45 uplink port with two multi-gigabit/multi-rate RJ-45 and two 10/100/1000 RJ-45 downlink/access ports.
The RJ-45 user ports support multi-gigabit/multi-rate speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps.
The RuggedNet switches feature a Small Form Pluggable (SFP) transceiver receptacle port supporting a variety of copper and fibre transceivers. It supports 10/100/1000BASE-T, 1000BASE-T, 2.5GBASE-T, 5GBASE-T and 10GBASE-T copper transceivers and 1G and 10G multimode or single-mode fibre, dual or single-fibre transceivers in standard, CWDM and DWDM wavelengths.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.
An alarm relay is available to detect user configured events. The relay contact can be configured for normally open or normally closed operation. One alarm input is available for detecting external events such as door open or closed.
All models can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with dual DC input power.
Features
- DC power source for dependable power supply
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organised
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Effectively increases available bandwidth on your network
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 10GBase-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet PoE+ |
| 2 x 10 Gigabit Ethernet PoE+ | |
| 1 x 10 Gigabit Ethernet Network |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 9666-1-14-2Z |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Packaged Quantity | 1 |
| Manufacturer | Omnitron Systems |
| Product Model | 9666-1-14-2Z |
| Product Name | RuggedNet 10GMGPoE+/Mi, 1x RJ-45, 4x RJ-45 PoE/PSE, 5 Year Warranty |
| Package Type | Retail |
| Product Line | RuggedNet |
| Product Series | 10GMGPoE+ |
| Brand Name | Omnitron Systems |
Physical Characteristics
| Weight (Approximate) | 1.50 lb |
| Form Factor | Wall Mountable |
| Rack-mountable | |
| DIN Rail Mountable | |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
Power Description
| Input Voltage | 57 V DC |
| 46 V DC | |
| 57 V DC | |
| 46 V DC | |
| Power Source | DC |
| PoE+ | |
| PoE (RJ-45) Port | Yes |
Miscellaneous
| Application/Usage | Industrial |
| Network | |
| Package Contents |
|
| Certifications & Standards | IEEE 802.3, 802.3bz, UL 62368-1, UL 60950-1, IEC 62368-1, IEC 60950-1, EN 62368-1, EN 60950-1, CAN/CSA C22.2 No. 62368-1-14, CAN/CSA C22.2 No. 60950-1, CE Mark EN 55032/24 CE Emissions/Immunity CISPR 32, FCC 47 Part 15 Subpart B Class A IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV (AC models), IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV (DC models), IEC 61000-4-5 Surge: Power: 1 kV Line/Line; 2 kV Line/Gnd; Signal: 2 kV (AC models), IEC 61000-4-6 CS: Signal: 3 Vrms, IEC 61000-4-8 ( Magnetic Field) 30 A/m, IEC 61000-4-11 (Voltage Dips, interrupts) IP20 Protection |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046177 |
| Product Series | Omnitron Systems RuggedNet Industrial Ethernet Switches |
| Product Type | Ethernet Switches |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
