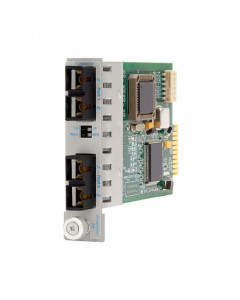

OST iConverter TM3 GIGE Transport ModUL SC/MM/DF/850nm/550M
SKU #2422-0-T
Omnitron iConverter TM3 Transport Module - Optical Fibre, Twisted Pair - Gigabit Ethernet - 1 Gbit/s - 1 x RJ-45
Typically Ships in 15 to 20 Business Days
Part Number
2422-0-T
Omnitron Systems iConverter TM3 Transport Module - Optical Fibre, Twisted Pair - Gigabit Ethernet - 1 Gbit/s - 1 x RJ-45

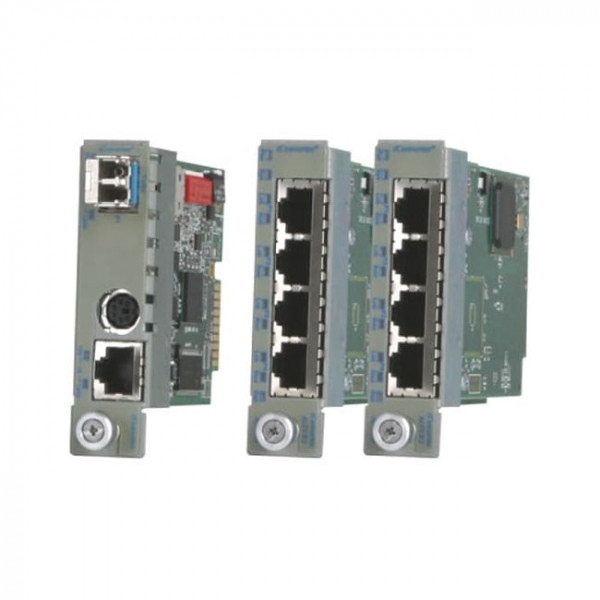

The iConverter Modular T1/E1 Multiplexer transports up to sixteen T1/E1 circuits and 10/100/1000 Ethernet over point-to-point fibre, CWDM channel or Ethernet Virtual Connection (EVC). This flexible and scalable system is comprised of an iConverter Fibre Transport module, and one or more iConverter 4xT1/E1 MUX modules installed in a 2, 5 or 19-module chassis.
Each iConverter Fibre Transport module and up to four contiguous iConverter 4xT1/E1 MUX modules combine to form a MUX group. A MUX group can connect with another MUX group at the opposite end of a dedicated fibre link or EVC. A MUX group can also interoperate with a managed iConverter fixed-configuration T1/E1 Multiplexer.
Power Description
| Input Voltage | 3.3 V DC |
| 3.3 V DC |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 1 |
| Management Port | Yes |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
Physical Characteristics
| Weight (Approximate) | 8 oz |
| Form Factor | Plug-in Module |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
Media & Performance
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fibre | |
| Network Technology Supported | 1000Base-X |
| 10/100/1000Base-T |
General Information
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 2422-0-T |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | TM3 |
| Product Name | iConverter TM3 Transport Module |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975027916 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
