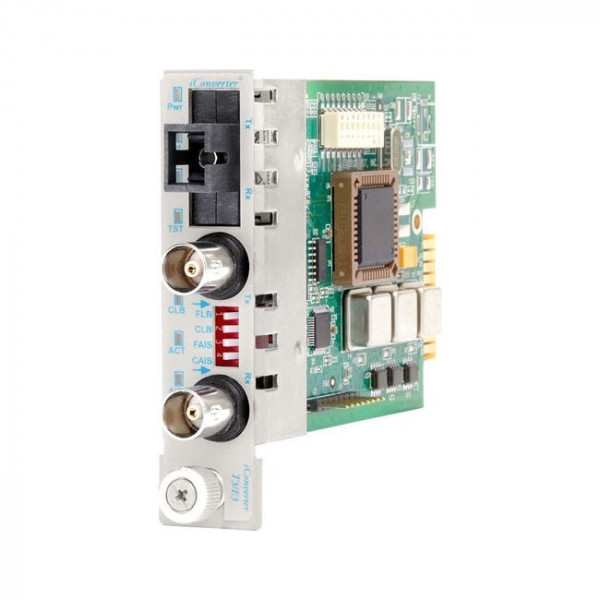

OST iConverter T3/E3 Coax to SC/SM SF Fibre TX1.5/RX1.3/20KM Module
SKU #8751-1
Omnitron iConverter T3/E3 Single-Fibre Media Converter Coaxial SC Single-mode 20km BiDi Module - 1 x T3/E3/DS-3 - 1 x SC Single-mode Single-Fibre (1550/1310) - Internal Module - Lifetime Warranty
Typically Ships in 15 to 20 Business Days
Part Number
8751-1
iConverter T3/E3 Single-Fibre Media Converter Coaxial SC Single-mode 20km BiDi Module - 1 x T3/E3/DS-3; 1 x SC Single-mode Single-Fibre (1550/1310); Internal Module; Lifetime Warranty
The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fibre conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fibre. T3/E3 media converters operate in pairs, extending distances over fibre, which improves noise immunity, quality of service, intrusion protection and network security.- Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
- Framing independent; supports framed or unframed and channelized or fractional unchannelized data
- Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
- Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fibre
- Management is available with the addition of a management module to the chassis
- Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
- With T3/E3 technology get up to 34.368Mbps (E-carrier) or 44.736Mbps (T-carrier) data transfer rate over service provider link
- Tuck the device out of the way with its Wall Mounting feature
- Coaxial cable for environment requiring moderate coverage and low bandwidth
Network & Communication
| Network Technology | DS-3 |
| T3/E3 | |
| Carrier Supported | T-carrier/E-carrier |
Interfaces/Ports
| Number of SC Ports | 1 |
| Number of BNC Ports | 2 |
| Total Number of Ports | 3 |
| SC Port Type | Simplex |
Media & Performance
| Maximum Distance Supported | 12.43 Mile |
| Media Type Supported | Coaxial |
| Optical Fibre | |
| Fibre Mode Supported | Single-mode |
| Fibre Optic Wavelength | 1550 nm |
Miscellaneous
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
Physical Characteristics
| Weight (Approximate) | 8 oz |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Desktop | |
| Internal | |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8751-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 8751-1-x |
| Product Name | iConverter T3/E3 SC Single-mode Single-Fibre 15/13 20km Plug-In Module |
| Package Type | Retail |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
