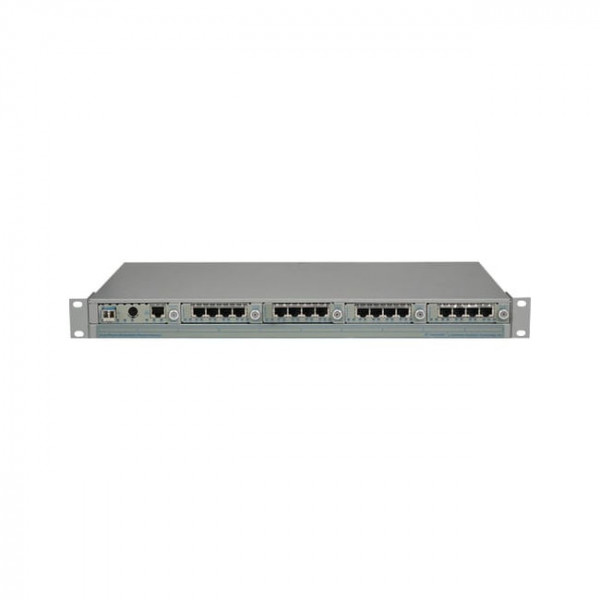

OST iConverter T1/E1 MUX 8X T1/E1 GIGE to SFP 48VDC Pwr Wide Temp
SKU #2439-0-23W
Omnitron Managed T1/E1 Multiplexer - Twisted Pair - Gigabit Ethernet - 1 Gbit/s
Typically Ships in 15 to 20 Business Days
Part Number
2439-0-23W
Omnitron Systems Managed T1/E1 Multiplexer - Twisted Pair - Gigabit Ethernet - 1 Gbit/s
The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fber optic transport link, and features remotely managed testing and confguration capabilities.The iConverter T1/E1 MUX/M operates in a back-to-back confguration, and can be used in applications such as multiple T1/E1 extension, mobile backhaul and building-to-building PBX connectivity.
The T1/E1 copper interfaces are available in 4, 8, 12 or 16 RJ-48 port confgurations for balanced T1/E1 applications. Optional adapter cables are available to convert each RJ- 48 interface to a BNC interface for unbalanced E1 transport applications.
I/O Expansions
| Expansion Slot Type | SFP |
Interfaces/Ports
| Number of RJ-48 Ports | 8 |
Power Description
| Input Voltage | 48 V DC |
| 48 V DC |
Physical Characteristics
| Weight (Approximate) | 7.50 lb |
| Form Factor | Rack-mountable |
| Height | 1.8" |
| Width | 17.2" |
| Depth | 9" |
Media & Performance
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Network Technology Supported | T1/E1 |
| 10/100/1000Base-T |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
General Information
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 2439-0-23W |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | T1/E1 MUX/M |
| Product Name | Managed T1/E1 Multiplexer |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975028043 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
