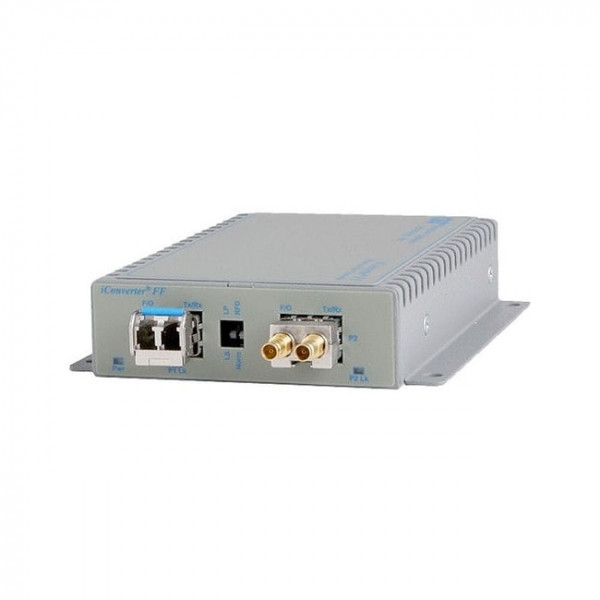

OST iConverter STM-1/OC-3 SFP Fibre to Coax Wall Mount with AC PS
SKU #8899S-0-D
Omnitron STM-1/OC-3 Coax to Fibre Media Converter - OC-3 - 1.0 x Expansion Slots - 1 x SFP Slots - Wall Mountable, Desktop
Typically Ships in 15 to 20 Business Days
Part Number
8899S-0-D
Omnitron Systems STM-1/OC-3 Coax to Fibre Media Converter - OC-3 - 1.0 x Expansion Slots - 1 x SFP Slots - Wall Mountable, Desktop
The iConverter STM 1 copper to fibre media converter converts 155.52Mbps STM-1e coax to STM-1 fibre. It can be used in Telecom or Enterprise applications where STM-1 or OC-3 transport is required beyond the maximum distance of copper (approximately 70m).
The copper port provides two mini-BNC 75Ω coax connectors that comply with the ITU-T G.703 and Telcordia GR-253 standards for CMI coded 155.52Mbps electrical interfaces. Adapter cables are included to convert the mini-BNC connectors to standard BNC type connectors.
Features
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Connect different types of media within a network with this single port
- With OC-3 technology get up to 155.52Mbps data transfer rate over optical fibre cable by service provider
- The Wall Mountable provides convenient installation
- Coaxial cable for environment requiring moderate coverage and low bandwidth
Network & Communication
| Network Technology | OC-3 |
Media & Performance
| Media Type Supported | Optical Fibre |
| Coaxial |
Power Description
| Input Voltage | 9 V DC |
| 9 V DC |
I/O Expansions
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Total Number of Expansion Slots | 1.0 |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
Compliance: |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
Physical Characteristics
| Weight (Approximate) | 1.50 lb |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1" |
| Width | 3.8" |
| Depth | 4.8" |
General Information
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 8899S-0-D |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Name | STM-1/OC-3 Coax to Fibre Media Converter |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
Interfaces/Ports
| USB | No |
| DVI | No |
| Network (RJ-45) | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of BNC Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 1 |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975046054 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Media Converters |
| Industry | Service and Content Providers, Carriers, Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities |
| Applications | HetNet (Heterogeneous Network), Indoor/Outdoor DAS (Distributed Antenna Systems), Network Infrastructure, Network Core and Edge |
| Standard Package Contains | |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
