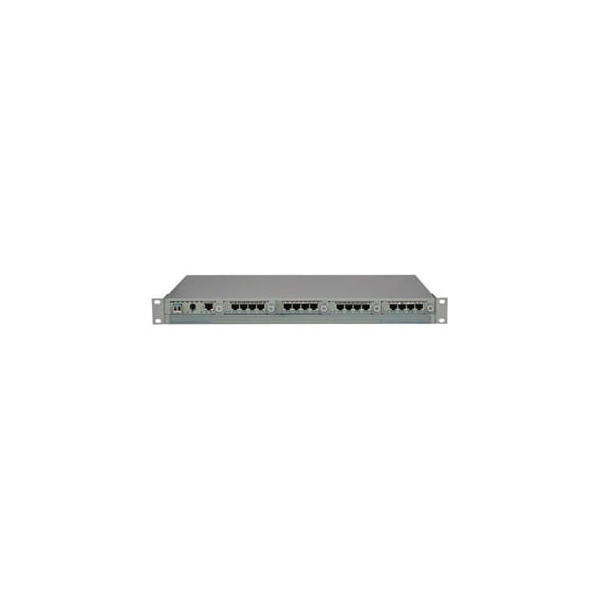

OST iConverter MUX 16X T1/E1+GIGE-SC/SM SF/1310nm/1550nm/20KM ACX2
SKU #2430-1-42
Omnitron iConverter 2430-1-42 Multiplexer - 1 Gbit/s - 1 x RJ-45
Typically Ships in 15 to 20 Business Days
Part Number
2430-1-42
Omnitron Systems iConverter 2430-1-42 Multiplexer - 1 Gbit/s - 1 x RJ-45
The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fibre optic transport link, and features remotely managed testing and configuration capabilities. The iConverter T1/E1 MUX/M operates in a back-to-back configuration, and can be used in applications such as multiple T1/E1 extension, mobile backhaul and building-to-building PBX connectivity.
Miscellaneous
| Package Contents |
|
| Country of Origin | United States |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 1 |
| Management Port | Yes |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 16 |
General Information
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 2430-1-42 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | 2430-1-42 |
| Product Name | iConverter 2430-1-42 Multiplexer |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
Physical Characteristics
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.8" |
| Width | 17.2" |
| Depth | 9" |
Media & Performance
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Media Type Supported | Twisted Pair |
| Optical Fibre | |
| Network Technology Supported | 1000Base-X |
| 10/100/1000Base-T |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975022959 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
