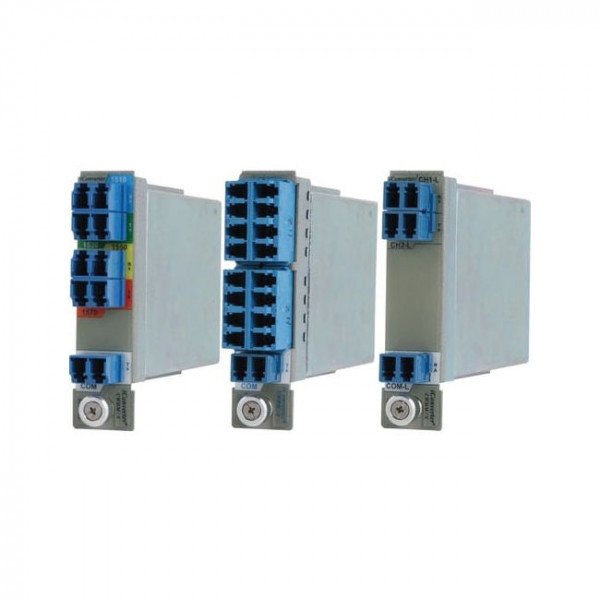

OST iConverter CWDM Band Splitter
SKU #8865-0
Omnitron iConverter CWDM Single Band-Splitter - Upper Band (1470 to 1610) and Lower Band (1270 to 1450) Mux/Demux
Typically Ships in 15 to 20 Business Days
Part Number
8865-0
Omnitron Systems iConverter CWDM Single Band-Splitter - Upper Band (1470 to 1610) and Lower Band (1270 to 1450) Mux/Demux
Omnitron System's iConverter 8865-0 is a band splitter multiplexer and demultiplexer for the upper band (1470 to 1610) and lower band (1270 to 1450). The band splitter is designed to combine/split the bands with least amount of insertion lose. Band splitter can be used to cascade two 8863-0 8-Channel mux to build a 16 Channel common link.- Compact form factor yields one of the highest port densities in the industry with up to 120 ports in a 2U chassis
- Protocol transparent to combine individual wavelengths for services ranging from Ethernet, EPON, RFoG, Fibre Channel, TDM and other protocols
- Minimal and uniform optical loss facilitates predictable network planning and efficient use of optical power budget.
- Seamless integration with other iConverter media converters and chassis for multi-service platforms
- Commercial (0 to 50°C) and wide (-40 to 60°C) temperature ranges
- One (1) Year Warranty and Free 24/7 Technical Suppor
Power Description
| Input Voltage | 3.3 V DC |
| 3.3 V DC |
General Information
| Product Type | Signal Splitter |
| Manufacturer Part Number | 8865-0 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Model | CWDM/X |
| Product Name | iConverter CWDM Single Band-Splitter |
| Brand Name | Omnitron Systems |
Physical Characteristics
| Weight (Approximate) | 12 oz |
| Height | 2.8" |
| Width | 0.9" |
| Depth | 4.5" |
Miscellaneous
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975022706 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
