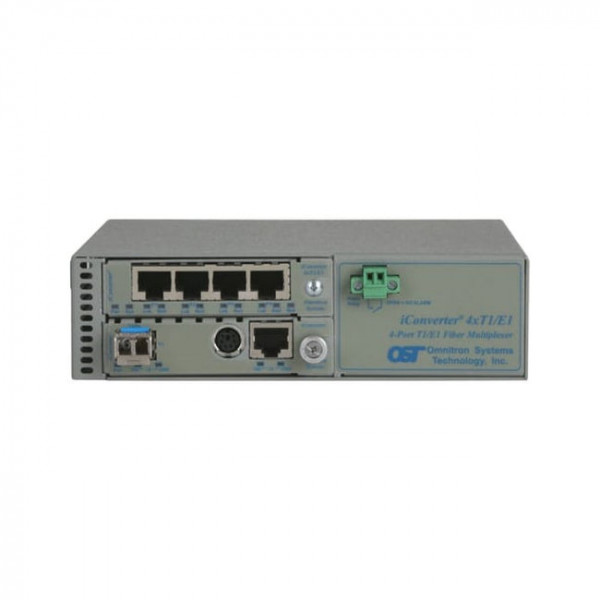

OST iConverter 4X T1/E1 + 10/100/1000 to SC/SM 1.5/80KM MUX DC CONN w/ Mgmt
SKU #8823N-3-C
Omnitron iConverter 4xT1/E1 MUX/M Managed T1/E1 Multiplexer - 4 Data Channels - Twisted Pair, Optical Fibre - Gigabit Ethernet - 1 Gbit/s - 1 x RJ-45
Typically Ships in 15 to 20 Business Days
Part Number
8823N-3-C
Omnitron Systems iConverter 4xT1/E1 MUX/M Managed T1/E1 Multiplexer - 4 Data Channels - Twisted Pair, Optical Fibre - Gigabit Ethernet - 1 Gbit/s - 1 x RJ-45
The iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fibre optic transport link, and features remotely managed testing and configuration capabilities.
The iConverter 4xT1/E1 MUX/M operates in a back-to-back configuration, with one multiplexer at each end of the fibre transport link. The 4xT1/E1 MUX/M can be used in applications where services from legacy TDM equipment require transport across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension, mobile backhaul and building-to-building PBX connectivity, making it ideal for Enterprise, Telecom and Utility industries.
Power Description
| Input Voltage | 60 V DC |
| 60 V DC |
Interfaces/Ports
| Number of Network (RJ-45) Ports | 1 |
| Management Port | Yes |
| Number of Data Channels | 4 |
| Number of SC Ports | 1 |
| Number of RJ-48 Ports | 4 |
Miscellaneous
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
Physical Characteristics
| Weight (Approximate) | 2.50 lb |
| Form Factor | Desktop |
| Height | 1.9" |
| Width | 6.7" |
| Depth | 5.5" |
General Information
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 8823N-3-C |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Manufacturer | Omnitron Systems |
| Product Name | iConverter 4xT1/E1 MUX/M Managed T1/E1 Multiplexer |
| Product Line | iConverter |
| Brand Name | Omnitron Systems |
Media & Performance
| Connectivity Technology | Wired |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fibre |
| Twisted Pair | |
| Network Technology Supported | 10/100/1000Base-T |
| 1000Base-X | |
| T1/E1 |
| Manufacturer | Omnitron Systems |
|---|---|
| Barcode | 0800975027039 |
| Product Series | Omnitron Systems iConverter Multi-Service Platform |
| Product Type | Add-Drop Multiplexer (ADM) |
| Warranty Notes | Free access to 24/7/365 Omnitron Technical Support |
