OST iConverter 10/100/1000 Gigabit Ethernet SC/SM-SF/13/15 DC Pwr

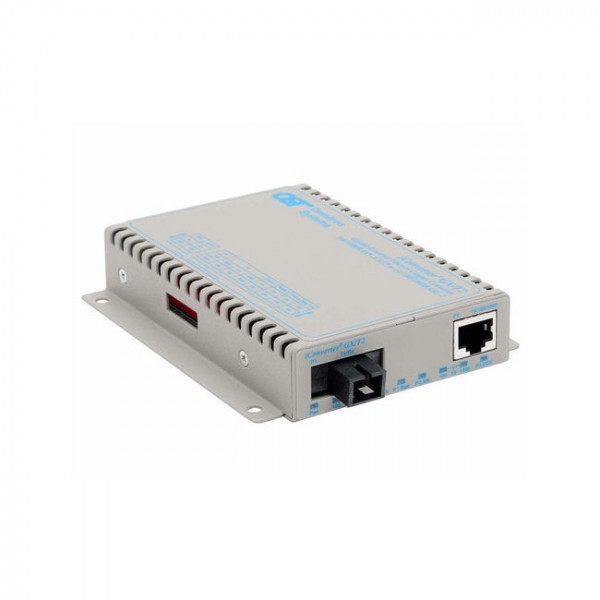

iConverter 10/100/1000 Gigabit Ethernet Single-Fibre Media Converter SC Single-Mode BiDi 20km - 1 x 10/100/1000BASE-T; 1 x 1000BASE-BX-U (1310/1550); Wall-Mount Standalone; DC Powered; Lifetime Warranty

The GX/T2 is a 10/100/1000BASE-T Ethernet to 100BASE-FX or 1000BASE-X fibre media converter. The GX/T2 SFP models support both 100BASE-FX and 1000BASE-X Small Form Pluggable (SFP) transceivers. The GX/T2 fixed fibre models support 1000BASE-X over multimode and single-mode fibre with SC and ST connectors; and single-mode single-fibre with SC connectors.

The RJ-45 port supports 10/100/1000 and Half/Full-Duplex auto-negotiation with both hardware and software manual override controls.

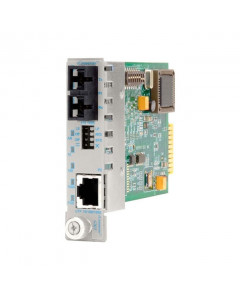

iConverter GX/T2 media converters are available as compact, unmanaged standalone units, or chassis plug-in modules that can be managed with a management module installed in the chassis. The hot-swappable plug-in module can be mounted in a 19 or 5-Module chassis with any combination of redundant AC and DC power supplies. It can also be mounted in a 2-Module AC or DC powered chassis, or in a 1-Module chassis with AC or DC power input.

Advanced features for the plug-in module models include IEEE 802.1Q VLAN and 802.1p Quality of Service prioritization standards, and Port Access Control, which provides the ability to enable or disable individual ports to control delivery of services. The GX/T2 also supports port-level MIB statistics reporting real-time packet statistics to provide performance and operational monitoring.
