OST Gigabit 60W PoE Media Converter 4X 10/100/1000T to LC SM 12KM DC ET

Omnitron Systems Managed 6-Port 60/100W IEEE 802.3bt PoE Gigabit Switches - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 60 W PoE Budget - Twisted Pair - PoE Ports - 1U High - Wall Mountable, Standalone, DIN Rail Mountable, Rack-mountable - 5 Year Limited Warranty

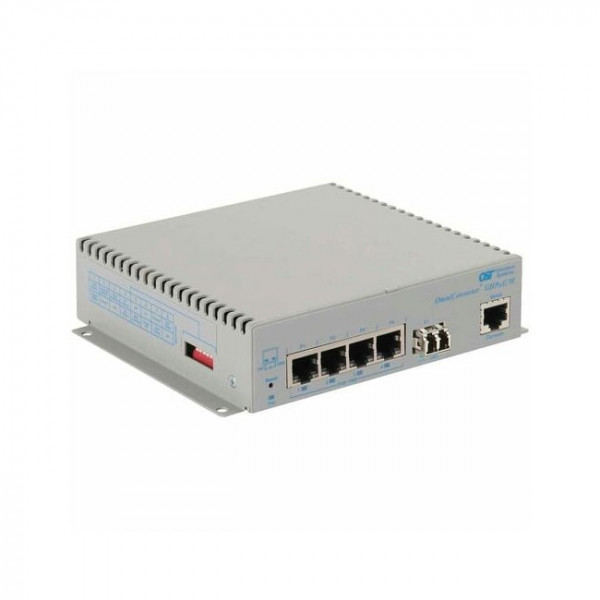

OmniConverter GHPoEBT/M

Managed 6-Port 60/100W IEEE 802.3bt PoE Gigabit Switches

The OmniConverter GHPoEBT/M replaces the GHPoE/M and is recommended for all new designs.

The OmniConverter GHPoEBT/M are compact High-Power PoE Ethernet switches that feature copper or fibre uplink ports and four 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports.

The GHPoEBT/M is an IEEE 802.3bt switch featuring 60W and 100W per user port models.

The OmniConverter PoE switches are standard Layer 2 Ethernet switches that forward frames to any port based on their MAC address.

All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.

Models with two fibre or two copper uplink ports support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Rapid Spanning Tree Protocol (RSTP) and daisy-chain configurations for high availability industrial network applications.

Models with two fibre or two copper uplink ports also support Dual Device mode that enables the switches to operate as two independent and isolated Ethernet switches.

The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. IPv4 and IPv6 are supported on the switches. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email notification and alarm reporting is provided.

The OmniConverter PoE switches are available with fixed fibre ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fibre ports support multimode or single-mode and dual fibre or single-fibre with distances up to 140km. SFP models support a variety of distances in standard, CWDM and DWDM wavelengths.

The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable PoE Watchdog self-healing function that automatically pings the attached PDs and automatically power cycles or shuts down the PD when the PD stops responding to the Watchdog signal. The Remote Power Reset and the PoE Watchdog functions save time and expense by eliminating the need to dispatch manpower to remote network sites.

• Managed 1G 60W and 100W PoE Ethernet Switch
• Supports the IEEE 802.3bt 60W or 100W
• Two 10/100/1000 copper or Gigabit fibre uplink ports
• Four 10/100/1000 copper PoE user ports
• ST, SC and LC fixed fibre ports or standard, CWDM or DWDM Gigabit SFP transceivers
• Supports jumbo frames up to 10,240 bytes
• PoE Watchdog Self-Healing function / PoE Heartbeat Monitoring automatically power cycle or shutdown unresponsive devices
• Configurable PoE Power Reset PoE power management with LLDP MED and MDI TLV, and PoE Power Multi-Day Scheduler
• Management via Web, Telnet, SSH, SNMPv1/v2c/v3 and serial interfaces
• Easy to use Hierarchical Command Line Interface
• SNMP management via Omnitron's NetOutlook management software, or third-party SNMP software
• Supports IPv4 and IPv6
• IEEE 802.1x, RADIUS, TACACS+ and ACL
• Email Notification
• Dual Device mode for operating as two separate switches
• Directed Switch mode AKA Camera mode to prevent port flooding
• AC to DC Power Adapter or 2-Pin DC terminal
• Wall, Rack and DIN-rail mountable
• Commercial (0º to 50ºC), wide (-40º to 60ºC) and extended (-40º
