OST FlexPoint 10/100BASETX RJ45 100B-FX SFP 10/100BASETX AC PS

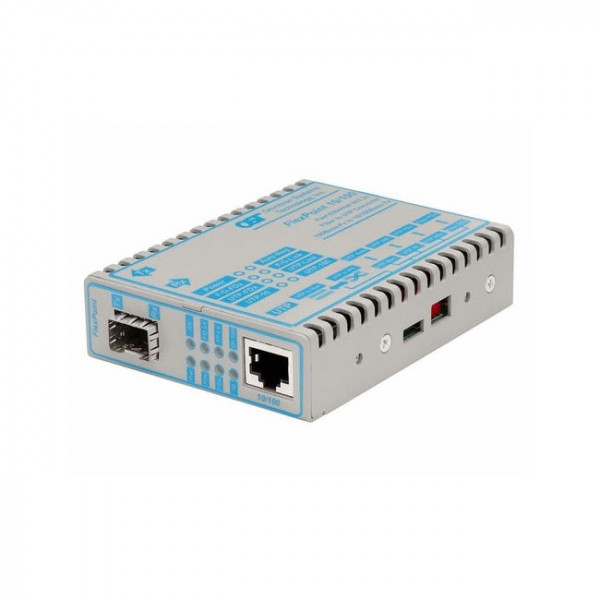

FlexPoint 10/100 Ethernet Fibre Media Converter RJ45 SFP - 1 x 10/100BASE-TX; 1 x 100BASE-X (SFP); US AC Powered; Lifetime Warranty

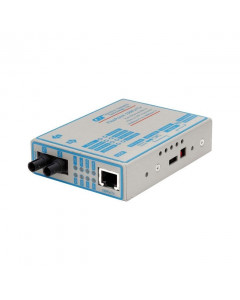

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fibre media converter that provides reliable and cost-effective network connectivity and fibre extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fibre and RJ-45 ports.

When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fibre port supports fixed-fibre connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fibre types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fibre, in standard and CWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
