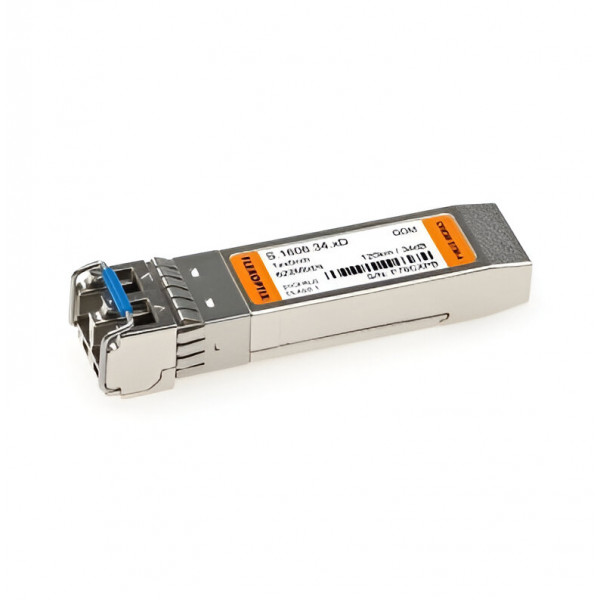

FLEXOPTIX STM4 SFP CWDM | 34 dB / ~120 km, 1270-1610 nm, Singlemode, LC
SKU #S.1606.34.xD
- Universal SFP Transceiver - 1270-1610 nm
- Use FLEXBOX to configure to almost any vendor
- CWDM for multiple applications over one duplex fiber
- Supported Data Rates: 125 Mbit/s - 0.6 Gbit/s
- Up to 120 km via Singlemode OS2 G.652 fiber (SMF)
- Need help selecting the right option for your vendor / hardware?
Request compatibility
As low as
AU$245.61
AU$270.17
Reordering - Contact to confirm availability
Part Number
S.1606.34.xD
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP |
| Connector | LC |
| Distance | 120 km |
| Interface | CWDM |
| Wavelength RX | 1270 nm |
| Power Budget (dB) | 34 dB |
| Transmit Min. | 2 dB |
| Receive Min. | -32 dB |
| Transmit Max. | 7 dB |
| Receive Max. (Receiver Overload) | -10 dB |
| Extinction Ratio | 8.2 dB |
| Bandwidth from | 0.125 G |
| Bandwidth to | 0.622 G |
| Laser | DFB |
| Receiver Type | PIN |
| Wavelength TX Min. | 1264nm |
| Wavelength TX Max. | 1277.50nm |
| Wavelength RX Max. | 1600nm |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | Fast Ethernet |
| Type | CWDM STM-4 |
| Vendor Switch Coding | MSA Standard, A10networks, ADTRAN, ADVA, Brocade, Dell, Force10 / Juniper, Keymile, Lynx, Netgear, Palo Alto Networks, Radware |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
