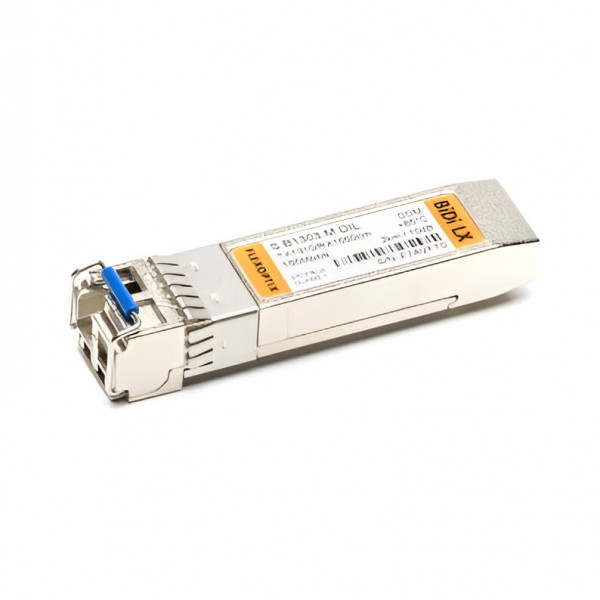

FLEXOPTIX STM1 SFP BiDi FX LC Industrial; 2 km, ᵀˣ1310 / ᴿˣ1550 nm, Multimode

SKU #S.B1303.M.DIL
  • Universal SFP BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwith by using only one fiber for transmit and receive
  • Only one LC connector
  • Supported Data Rates: 125 Mbit/s - 0.2 Gbit/s
  • Up to 2 km via Multimode OM1 @ 160MHz fiber (MMF)
  • Operating Temperature from -40.0℃ to 85.0℃
AU$45.70 AU$50.27
Reordering - Contact to confirm availability
Part Number
S.B1303.M.DIL
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP
Connector LC
Distance 2 km
Interface BiDi
Wavelength TX 1310 nm
Wavelength RX 1550 nm
Power Budget (dB) 10 dB
Transmit Min. -20 dB
Receive Min. -30 dB
Transmit Max. -10 dB
Receive Max. (Receiver Overload) -8 dB
Extinction Ratio 9 dB
Bandwidth from 0.1 G
Bandwidth to 0.2 G
Laser FP
Receiver Type PIN
Wavelength TX Min. 1260nm
Wavelength TX Max. 1360nm
Wavelength RX Min. 1500nm
Wavelength RX Max. 1580nm
Temperature Range -40°C - 85°C
Type of DDM / DOM Internally calibrated
Networking Protocol Fast Ethernet, OC3/STM1
Type BiDi FX
Operating Temp. (Min) -40°C
Operating Temp. (Max) 85°C
Vendor Switch Coding MSA Standard
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team,
Engineered to FLEXOPTIX exacting standards
You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
