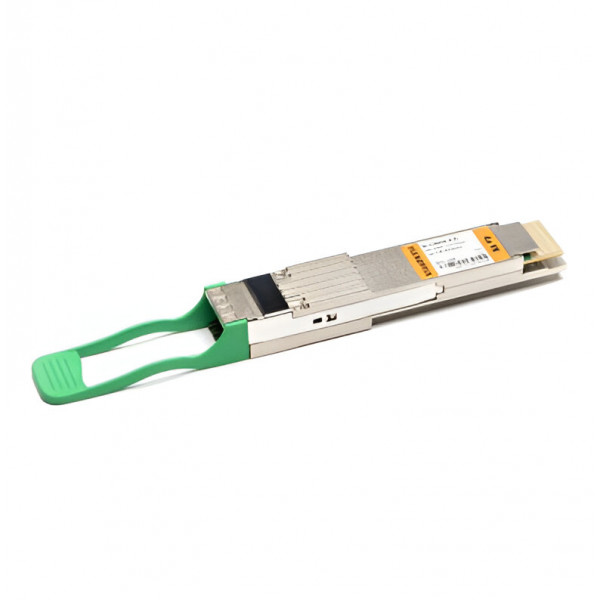

FLEXOPTIX 4x 100G QSFP-DD DR4+ with dual CDR | 2 km, 4x λ1310 nm, SN-Duplex, Singlemode

SKU #D.134HG.2.N
  • QSFP-DD Transceiver
  • For 100GBASE-DR4+ Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • PAM4 modulated signal
  • Supported Data Rates: 4x 106.25 Gbit/s
  • Up to 2 km via Singlemode OS2
  • 4x SN-Duplex Connector
AU$1,544.88 AU$1,699.37
Reordering - Contact to confirm availability
Part Number
D.134HG.2.N
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor QSFP-DD
Connector 4x SN-Duplex UPC
Distance 2 km
Interface 4x DR4+
Wavelength TX 4x 1310 nm
Power Budget (dB) 6.2 dB
Transmit and Dispersion Penalty 3.4 dB
Extinction Ratio 3.5 dB
Bandwidth Range 4x 106.25 Gbit/s
Laser EML
Receiver Type PIN
Temperature Range 0°C - 70°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol 100G Ethernet
Vendor Switch Coding MSA Standard, Juniper
CDR TX and RX
Inbuilt FEC Yes
Bandwidth Per Lane 106.25 Gbit/s
Receiver Min/Max -6.4 dBm / 4.5 dBm (overload)
SGMII No
Transmit Min/Max -0.2 dBm / -4 dBm
Power Consumption 12 W
Lane Count 4x (Tx/Rx)
Modulation PAM4
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
