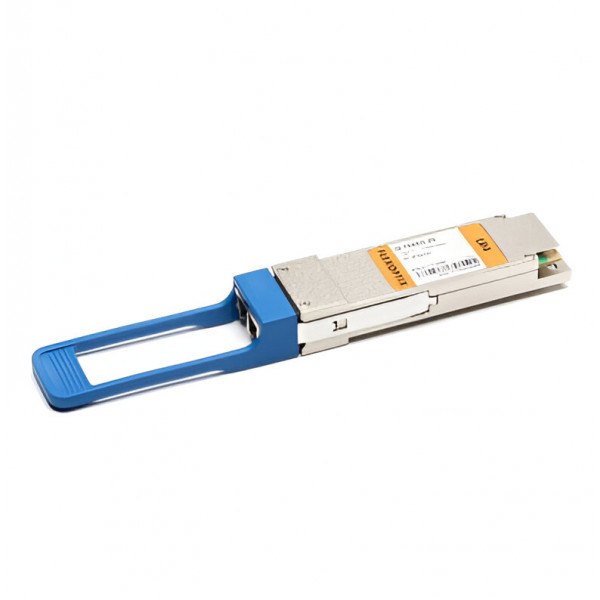

FLEXOPTIX 40G QSFP+ LR4 LC Industrial; 20 km, λ 1270-1330 nm, Singlemode

SKU #Q.1640G.20
  • Universal QSFP+ Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Supported Data Rates: 10 Gbit/s - 41.2 Gbit/s
  • Up to 20 km via Singlemode OS2 G.652 fiber (SMF)
  • LC connector
AU$496.80 AU$546.48
Reordering - Contact to confirm availability
Part Number
Q.1640G.20
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor QSFP+
Connector LC
Distance 20 km
Interface Singlemode
Wavelength TX 1270 nm
Wavelength RX 1310 nm
Power Budget (dB) 7.5 dB
Transmit Min. -4 dB
Receive Min. -11.5 dB
Transmit Max. 2.3 dB
Receive Max. (Receiver Overload) 2.3 dB
Extinction Ratio 3.5 dB
Bandwidth from 10.3 G
Bandwidth to 41.2 G
Laser DFB
Receiver Type PIN
Wavelength TX Min. 1224.50nm
Wavelength TX Max. 1297.50nm
Wavelength RX Min. 1264.50nm
Wavelength RX Max. 1337.50nm
Temperature Range -10°C - 70°C
Type of DDM / DOM Internally calibrated
Networking Protocol 10G Ethernet, 40G Ethernet
Type LR4
Operating Temp. (Min) -10°C
Operating Temp. (Max) 70°C
Vendor Switch Coding MSA Standard, A10networks, Check Point, D-LINK, Dell (ex. Force10), F5 Networks, Ixia, NetOptics, Oracle, Palo Alto Networks, PLANET, Raisecom
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team,
Engineered to FLEXOPTIX exacting standards
You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
