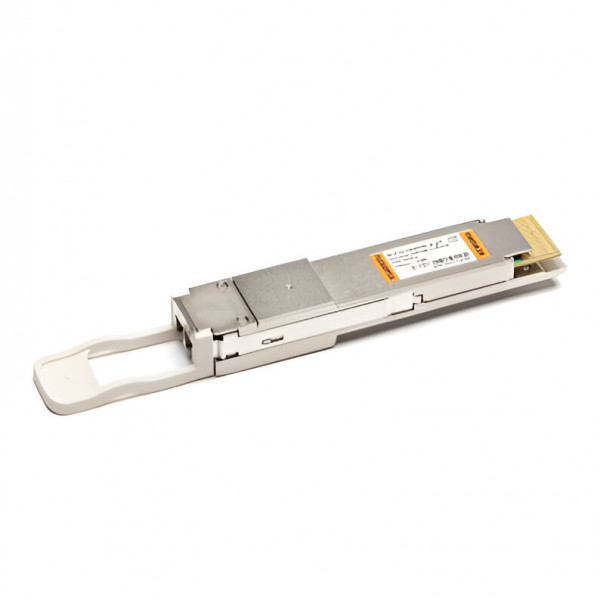

FLEXOPTIX 400G QSFP-DD Tuneable DWDM ZR with dual CDR | 120 km*, 49 Channels, 100GHz Grid, C-Band, LC-Duplex, Singlemode
SKU #D.CO164HG.2.YT
- Universal tunable QSFP-DD Transceiver
- Use FLEXBOX in combination with FLEXSOX to configure to almost any vendor
- For 400GBASE-ZR Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- 16QAM modulated signal
- *120 km for amplified links (min rx -12 dBm with OSNR >26 dB) based on application code 0x01. In [400G ZR operation modes] below you will find further flexible options.
- Supported Data Rates: 425 Gbit/s
- Up to 120 km via Singlemode OS2
- LC-Duplex Connector
AU$15,116.97
AU$16,628.67
Reordering - Contact to confirm availability
Part Number
D.CO164HG.2.YT
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | QSFP-DD |
| Connector | LC-Duplex PC |
| Distance | 120 km |
| Interface | DWDM, DWDM Tuneable |
| Power Budget (dB) | 6 dB |
| Transmit Min. | -10 dBm per lane |
| Receive Min. | -12 dBm per lane |
| Transmit Max. | -6 dBm per lane |
| Receive Max. (Receiver Overload) | 0 dBm (overload) @400G per lane |
| Transmit and Dispersion Penalty | 0.5 dB |
| Bandwidth from | 425 Gbit/s |
| Bandwidth to | 425 Gbit/s |
| Bandwidth Range | Chromatic Dispersion Tolerance: 0 ps/nm to 2,400 ps/nm @400G |
| Laser | EML |
| Receiver Type | Coherent |
| Wavelength TX (Typical) | tunable Coherent DWDM |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Yes, internally calibrated |
| Networking Protocol | 400G Ethernet |
| Type | DWDM Coh. ZR |
| Vendor Switch Coding | Juniper |
| CDR | TX and RX |
| Inbuilt FEC | Yes |
| SGMII | No |
| Power Consumption | 18 W |
| Modulation | DP-16QAM @400G |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
Write Your Own Review
Customer Questions
In This Series
-

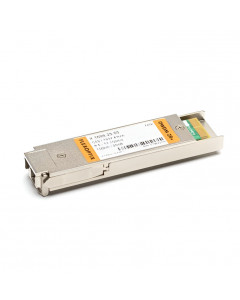

FLEXOPTIX 10G XFP DWDM ZR+ | 100 km, C17 / 1563.86 nm to C61 / 1528.77 nm, 100 Ghz Grid - C-Band, Singlemode, LCAs low as AU$1,102.94 AU$1,213.23
-
-
-
