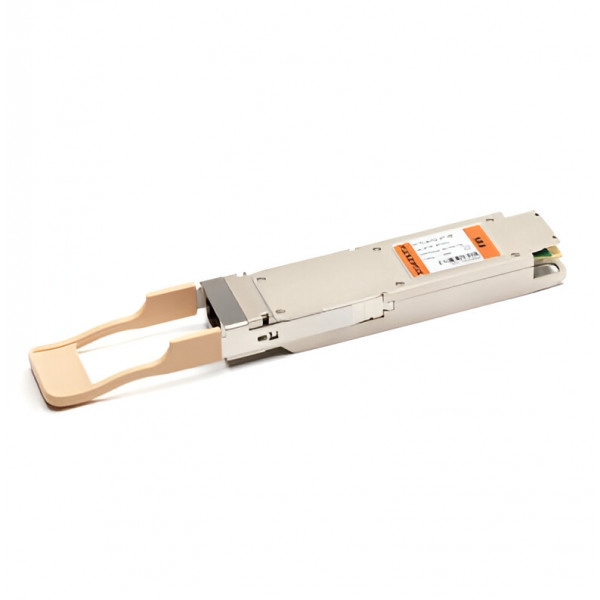

FLEXOPTIX 400G OSFP SR8 with dual CDR | 100 m, 8x λ850 nm, MTP/MPO, Multimode
SKU #O.854HG.01.M
- OSFP Transceiver
- For 400GBASE-DR4 Ethernet links
- Integrated Clock-Data-Recovery (CDR)
- PAM4 modulated signal
- Supported Data Rates: 425 Gbit/s (4x 106.25 Gbit/s)
- Up to 500 m via Singlemode OS2
- Use ONLY with MTP/MPO APC connectors
- Need help selecting the right option for your vendor / hardware?
Request compatibility
AU$1,489.54
AU$1,638.49
Reordering - Contact to confirm availability
Part Number
O.854HG.01.M
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | OSFP |
| Connector | MTP / MPO APC |
| Distance | 100 m |
| Interface | Multimode |
| Wavelength TX | 8x 850 nm |
| Power Budget (dB) | 1.9 dB |
| Transmit Min. | -6 dBm |
| Receive Min. | -7.9 dBm |
| Transmit Max. | 4 dBm |
| Receive Max. (Receiver Overload) | 4 dBm (overload) |
| Transmit and Dispersion Penalty | 4 dBm |
| Extinction Ratio | 3 dBm |
| Bandwidth from | 106.25 Gbit/s |
| Bandwidth to | 53.13 Gbit/s |
| Laser | VCSEL |
| Receiver Type | PIN |
| Wavelength TX Min. | 840 nm |
| Wavelength TX Max. | 860 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 400G Ethernet |
| Type | SR8 |
| Operating Temp. (Min) | 0°C |
| Operating Temp. (Max) | 70°C |
| Vendor Switch Coding | MSA Standard |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
