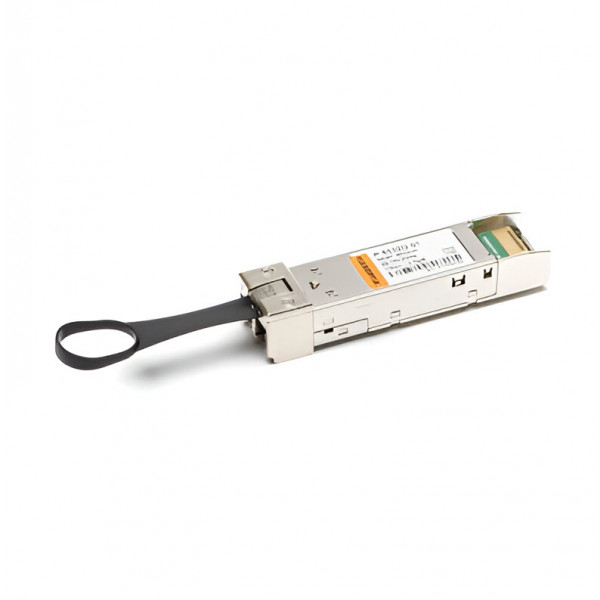

FLEXOPTIX 32G Fibre Channel SFP28 with dual CDR | 100 m, λ850 nm, LC-Duplex, Multimode

SKU #P.8532G.01
  • Universal Fibre Channel SFP28 Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Fibre Channel (FC) support for storage area network (SAN) interconnect
  • Integrated Clock-Data-Recovery (CDR)
  • Supported Data Rates: 27.95 Gbit/s - 28.05 Gbit/s
  • Up to 100 m via Multimode OM4
  • LC-Duplex Connector
AU$160.73 AU$176.80
Reordering - Contact to confirm availability
Part Number
P.8532G.01
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP28
Connector LC-Duplex PC
Distance 100 m
Interface 32G FC SW
Wavelength TX 850 nm
Power Budget (dB) 3.5 dB
Transmit and Dispersion Penalty 0 dB
Extinction Ratio 0 dB
Laser VCSEL
Receiver Type PIN
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard, Brocade, Cisco Systems, Pure Storage
Modulation NRZ
CDR TX and RX
Inbuilt FEC No
Receiver Min/Max -10.2 dBm / 3 dBm (overload)
SGMII No
Transmit Min/Max -6.7 dBm / 2.4 dBm
Wavelength RX (Range) 840 - 860 nm
Power Consumption 1.2 W
Bandwidth Range 27.95 Gbit/s - 28.05 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 16G Fibre Channel, 8G Fibre Channel, 32G Fibre Channel
Temperature Range 0°C - 70°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
