FLEXOPTIX 32G Fibre Channel SFP28 with dual CDR | 10 km, λ1310 nm, LC-Duplex, Singlemode
SKU #P.1332G.10
AU$374.96
AU$412.46
Reordering - Contact to confirm availability
Part Number
P.1332G.10
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP28 |
| Connector | LC-Duplex PC |
| Distance | 10 km |
| Interface | 32G FC LW |
| Wavelength TX | 1310 nm |
| Power Budget (dB) | 5.4 dB |
| Transmit and Dispersion Penalty | 3.2 dB |
| Extinction Ratio | 4 dB |
| Bandwidth Range | 27.95 Gbit/s - 28.05 Gbit/s |
| Laser | DFB |
| Receiver Type | IDP |
| Wavelength RX (Range) | 1260 - 1355 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Yes, internally calibrated |
| Networking Protocol | 25G Ethernet, 32G Fibre Channel |
| Vendor Switch Coding | MSA Standard, Brocade, Cisco Systems, Huawei, Pure Storage |
| CDR | TX and RX |
| Inbuilt FEC | No |
| Receiver Min/Max | -10.4 dBm / 3 dBm (overload) |
| SGMII | No |
| Transmit Min/Max | -5 dBm / 3.5 dBm |
| Power Consumption | 1.2 W |
| Modulation | NRZ |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Standard Package Contains | |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
Write Your Own Review
Customer Questions
In This Series
-

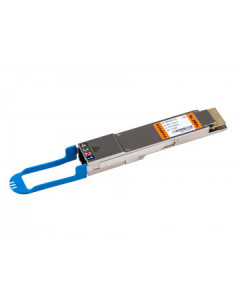

FLEXOPTIX 4x 400G QSFP-DD DR4 with dual CDR | 500 m, 4x λ1310 nm, SN-Duplex, SinglemodeAU$2,262.23 AU$2,488.45
-
FLEXOPTIX 400G QSFP-DD PLR4 with dual CDR | 10 km, 4x λ1310 nm, MTP/MPO-8/12 APC, SinglemodeAU$4,099.22 AU$4,509.14
-
FLEXOPTIX 4x 100G QSFP-DD DR4+ with dual CDR | 2 km, 4x λ1310 nm, SN-Duplex, SinglemodeAU$2,755.08 AU$3,030.59
-
FLEXOPTIX 100G CFP2 to QSFP28 adapter; converter module, Multimode, SinglemodeAU$2,048.31 AU$2,253.14
Related Products
-

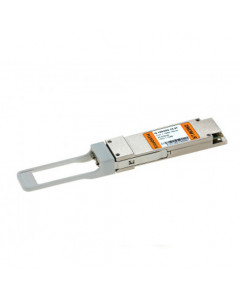

FLEXOPTIX 40G QSFP+ DWDM LR WITH FEC |10 km / 10 dB, 100 GHz Grid - C-Band, LC-DuplexAs low as AU$4,603.68 AU$5,064.05
-
FLEXOPTIX 4x 100G QSFP-DD LR with dual CDR | 10 km, 4x λ1310 nm, SN-Duplex, SinglemodeAU$4,099.22 AU$4,509.14
-

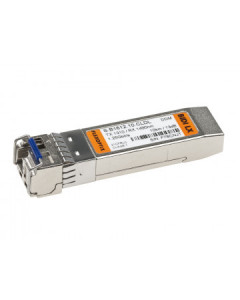

FLEXOPTIX 10G SFP+ BiDi ZR with dual CDR | 80 km, ᵀˣ1550 / ᴿˣ1490 nm, LC-Simplex, SinglemodeAU$1,250.05 AU$1,375.06
