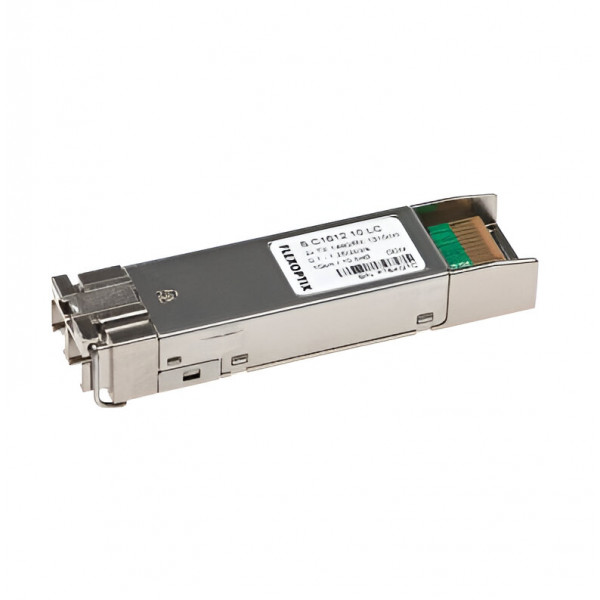

FLEXOPTIX 2x 1G CSFP BiDi EX Industrial | 40 km, 2x ᵀˣ1490 / 2x ᴿˣ1310 nm, DDM, LC-Simplex, Singlemode

FLEXOPTIX
Be the first to review this product
SKU #S.C1612.40.LCI
  • Universal CSFP Dual BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your devices port density - one transceiver two applications
  • For 1000BASE-EX Ethernet links
  • Supported Data Rates: 2x 125 Mbit/s - 2x 1.25 Gbit/s
  • Up to 40 km via Singlemode OS2
  • 2x LC-Simplex Connector
  • Operating Temperature from -40&C to 85&C, Digital Diagnostic Monitoring (DDM)
AU$317.51 AU$349.26
Reordering - Contact to confirm availability
Part Number
S.C1612.40.LCI
Add to Wish List Add to Compare
Email
More Information
Product Questions
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor CSFP
Connector 2x LC-Simplex UPC
Distance 40 km
Interface 2x BiDi EX
Wavelength TX 2x 1490 nm
Power Budget (dB) 19 dB
Transmit and Dispersion Penalty -3 dB
Extinction Ratio 6 dB
Bandwidth Range 2x 125 Mbit/s - 2x 1.25 Gbit/s
Laser DFB
Receiver Type PIN
Temperature Range -40°C - 85°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol Fast Ethernet, Gigabit Ethernet
Vendor Switch Coding MSA Standard, Cisco Systems
CDR none
Inbuilt FEC No
Bandwidth Per Lane 125 Mbit/s - 1.25 Gbit/s
Receiver Min/Max -24 dBm / -3 dBm (overload)
SGMII No
Transmit Min/Max -5 dBm / 0 dBm
Power Consumption 1.5 W
Lane Count 2x (Tx/Rx)
Modulation NRZ
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
