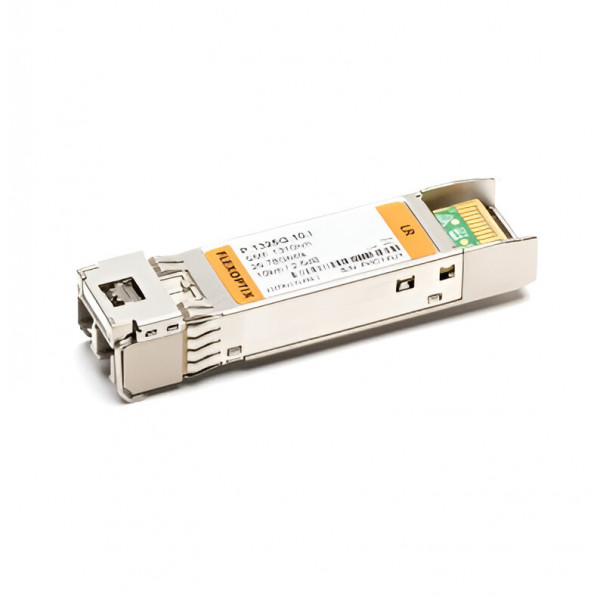

FLEXOPTIX 25G SFP28 LR Industrial with dual CDR | 10 km, λ1310 nm, LC-Duplex, Singlemode

Be the first to review this product

SKU #P.1325G.10.I

Universal SFP28 Transceiver
Use FLEXBOX to configure to almost any vendor
For 25GBASE-LR Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 25.78 Gbit/s
Up to 10 km via Singlemode OS2
LC-Duplex Connector
Operating Temperature from -40°C to 85°C

AU$128.28 AU$141.11

Reordering - Contact to confirm availability

Part Number

P.1325G.10.I

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP28
Connector	LC-Duplex PC
Distance	10 km
Interface	LR
Wavelength TX	1310 nm
Power Budget (dB)	2.5 dB
Transmit and Dispersion Penalty	2.7 dB
Extinction Ratio	3.5 dB
Bandwidth Range	25.78 Gbit/s
Laser	DFB
Receiver Type	PIN
Wavelength RX (Range)	1260 - 1350 nm
Temperature Range	-40°C - 85°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	25G Ethernet
Vendor Switch Coding	MSA Standard, Cisco Systems, Juniper
CDR	TX and RX
Inbuilt FEC	No
Receiver Min/Max	-9.5 dBm / 2.2 dBm (overload)
SGMII	No
Transmit Min/Max	-7 dBm / 2 dBm
Power Consumption	1.5 W
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
