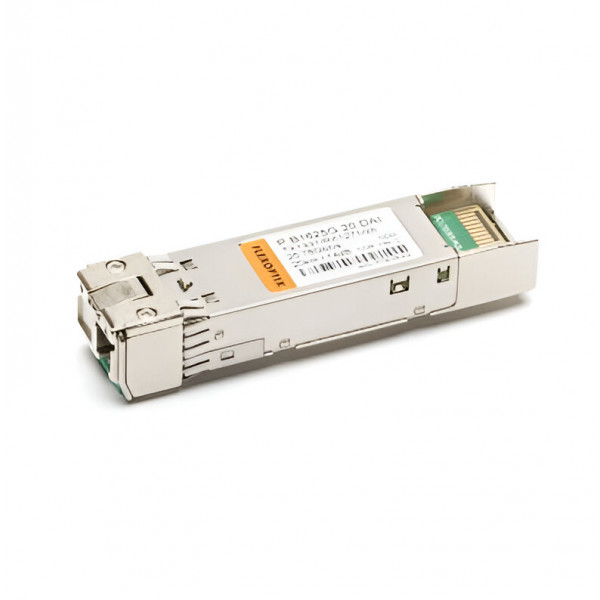

FLEXOPTIX 25G SFP28 BiDi LR Industrial with dual CDR | 20 km, ᵀˣ1331 / ᴿˣ1271 nm, LC-Simplex, Singlemode

SKU #P.B1625G.20.DAI

Universal SFP28 BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
For 25GBASE-LR Ethernet links
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 25.78 Gbit/s
Up to 20 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -40&C to 85&C

AU$299.81 AU$329.79

Reordering - Contact to confirm availability

Part Number

P.B1625G.20.DAI

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP28
Connector	LC-Simplex UPC
Distance	20 km
Interface	BiDi LR
Wavelength TX	1331 nm
Power Budget (dB)	14 dB
Transmit and Dispersion Penalty	3.5 dB
Extinction Ratio	3.5 dB
Laser	DFB
Receiver Type	APD
Type of DDM / DOM	Yes, internally calibrated
Vendor Switch Coding	MSA Standard
Modulation	NRZ
CDR	TX and RX
Inbuilt FEC	No
Receiver Min/Max	-14 dBm / -3 dBm (overload)
SGMII	No
Transmit Min/Max	0 dBm / 5 dBm
Wavelength RX (Range)	1264.5 - 1277.5 nm
Power Consumption	1.5 W
Bandwidth Range	25.78 Gbit/s
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol	10G Ethernet, 25G Ethernet
Temperature Range	-40°C - 85°C
Standard Package Contains
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
