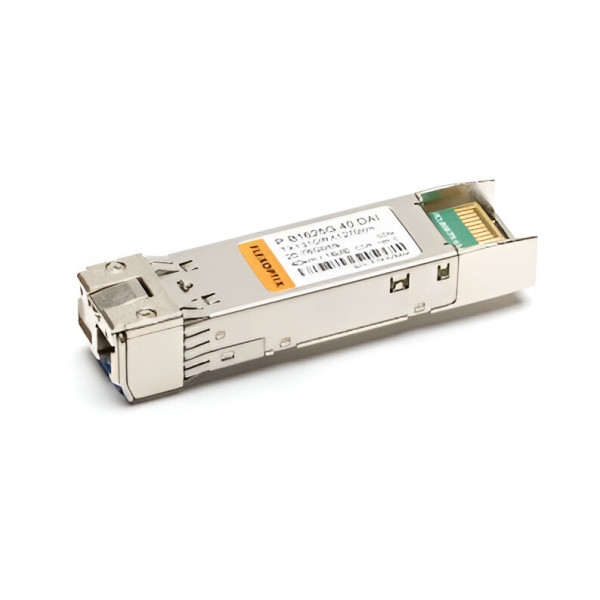

FLEXOPTIX 25G SFP28 BiDi ER Industrial with dual CDR | 40 km, ᵀˣ1310 / ᴿˣ1270 nm, LC-Simplex, Singlemode

SKU #P.B1625G.40.DAI
  • Universal SFP28 BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwith by using only one fiber for transmit and receive
  • For 25GBASE-ER Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • Supported Data Rates: 25.78 Gbit/s
  • Up to 40 km via Singlemode OS2
  • LC-Simplex Connector
  • Operating Temperature from -40&C to 85&C
AU$919.60 AU$1,011.56
Confirm stocks / Dispatched from Germany (7 days)
Part Number
P.B1625G.40.DAI
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP28
Connector LC-Simplex UPC
Distance 40 km
Interface BiDi ER
Wavelength TX 1310 nm
Power Budget (dB) 18 dB
Transmit and Dispersion Penalty 2.7 dB
Extinction Ratio 4 dB
Laser DFB
Receiver Type APD
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard
Modulation NRZ
CDR TX and RX
Inbuilt FEC No
Receiver Min/Max -19 dBm / -4 dBm (overload)
SGMII No
Transmit Min/Max -1 dBm / 6 dBm
Wavelength RX (Range) 1260 - 1280 nm
Power Consumption 1.8 W
Bandwidth Range 25.78 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 10G Ethernet, 25G Ethernet
Temperature Range -40°C - 85°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
