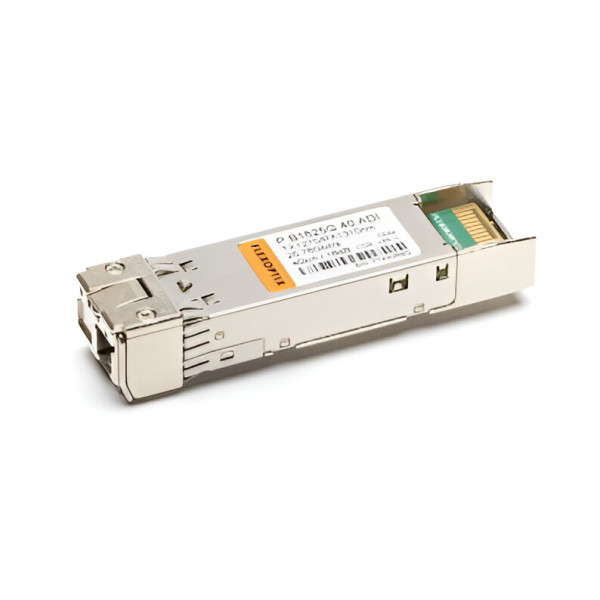

FLEXOPTIX 25G SFP28 BiDi ER Industrial with dual CDR | 40 km, ᵀˣ1270 / ᴿˣ1310 nm, LC-Simplex, Singlemode

FLEXOPTIX
Be the first to review this product
SKU #P.B1625G.40.ADI
  • Universal SFP28 BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwith by using only one fiber for transmit and receive
  • For 25GBASE-ER Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • Supported Data Rates: 25.78 Gbit/s
  • Up to 40 km via Singlemode OS2
  • LC-Simplex Connector
  • Operating Temperature from -40&C to 85&C
AU$690.86 AU$759.95
Reordering - Contact to confirm availability
Part Number
P.B1625G.40.ADI
Add to Wish List Add to Compare
Email
More Information
Product Questions
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP28
Connector LC-Simplex UPC
Distance 40 km
Interface BiDi ER
Wavelength TX 1270 nm
Power Budget (dB) 18 dB
Transmit and Dispersion Penalty 2.7 dB
Extinction Ratio 4 dB
Laser DFB
Receiver Type APD
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard
Modulation NRZ
CDR TX and RX
Inbuilt FEC No
Receiver Min/Max -19 dBm / -4 dBm (overload)
SGMII No
Transmit Min/Max -1 dBm / 6 dBm
Wavelength RX (Range) 1300 - 1320 nm
Power Consumption 0 W
Bandwidth Range 25.78 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 10G Ethernet, 25G Ethernet
Temperature Range -40°C - 85°C
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
