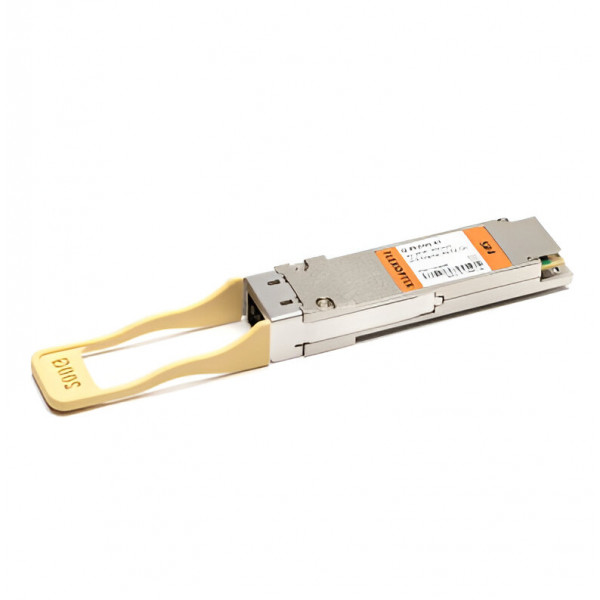

FLEXOPTIX 200G QSFP56 SR4 with dual CDR | 70 m, 4x λ850 nm, MTP/MPO APC, Multimode

SKU #Q.852HG.01
  • Universal QSFP56 Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • For 200GBASE-SR4 Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • PAM4 modulated signal
  • Supported Data Rates: 212.5 Gbit/s (4x 53.13 Gbit/s)
  • Up to 70 m via Multimode OM3
  • Use ONLY with MTP/MPO APC connectors
AU$978.33 AU$1,076.16
Reordering - Contact to confirm availability
Part Number
Q.852HG.01
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor QSFP56
Connector MTP/MPO APC
Distance 70 m
Interface SR4
Wavelength TX 4x 850 nm
Power Budget (dB) 3.9 dB
Transmit and Dispersion Penalty 3 dB
Extinction Ratio 4.5 dB
Bandwidth Range 212.5 Gbit/s
Laser VCSEL
Receiver Type PIN
Temperature Range 0°C - 70°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol 200G Ethernet
Vendor Switch Coding MSA Standard
CDR TX and RX
Inbuilt FEC No
Bandwidth Per Lane 53.13 Gbit/s
Receiver Min/Max -8.4 dBm / 4 dBm (overload)
SGMII No
Transmit Min/Max -4.5 dBm / 3 dBm
Power Consumption 5 W
Lane Count 4x (Tx/Rx)
Modulation PAM4
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
