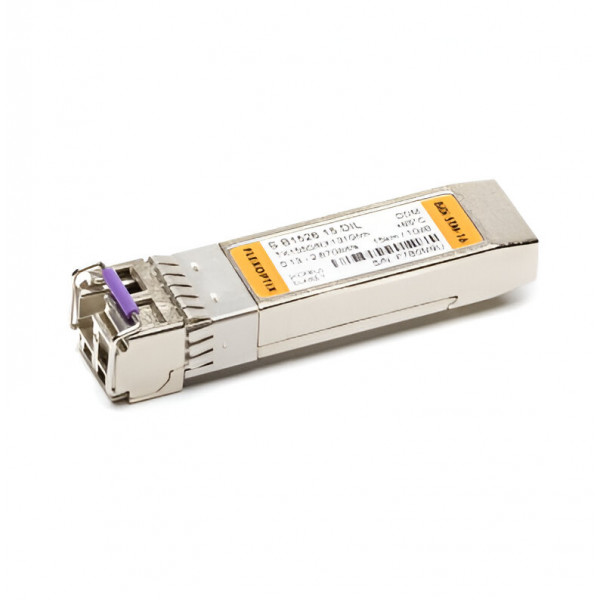

FLEXOPTIX 2.67G SFP STM-16 Industrial | 15 km, λ1550 nm, DDM, LC-Duplex, Singlemode

Be the first to review this product

SKU #S.B1526.15.DIL

Universal SONET / SDH SFP Transceiver
Use FLEXBOX to configure to almost any vendor
Capable of operating in SDH / SONET networks
Supported Data Rates: 125 Mbit/s - 2.67 Gbit/s
Up to 15 km via Singlemode OS2
LC-Duplex Connector
Operating Temperature from -40&C to 85&C, Digital Diagnostic Monitoring (DDM)

AU$126.98 AU$139.68

Reordering - Contact to confirm availability

Part Number

S.B1526.15.DIL

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP
Connector	LC-Duplex PC
Distance	15 km
Interface	STM-16
Wavelength TX	1550 nm
Power Budget (dB)	10 dB
Extinction Ratio	8.2 dB
Bandwidth Range	125 Mbit/s - 2.67 Gbit/s
Laser	DFB
Receiver Type	PIN
Wavelength RX (Range)	1260 - 1360 nm
Temperature Range	-40°C - 85°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	Fast Ethernet, 1G Fibre Channel, 2G Fibre Channel, Gigabit Ethernet, STM-1, STM-4, STM-16
Vendor Switch Coding	MSA Standard, Hirschmann
CDR	none
Inbuilt FEC	No
Receiver Min/Max	-15 dBm / -3 dBm (overload)
SGMII	No
Transmit Min/Max	-5 dBm / 0 dBm
Power Consumption	1 W
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
