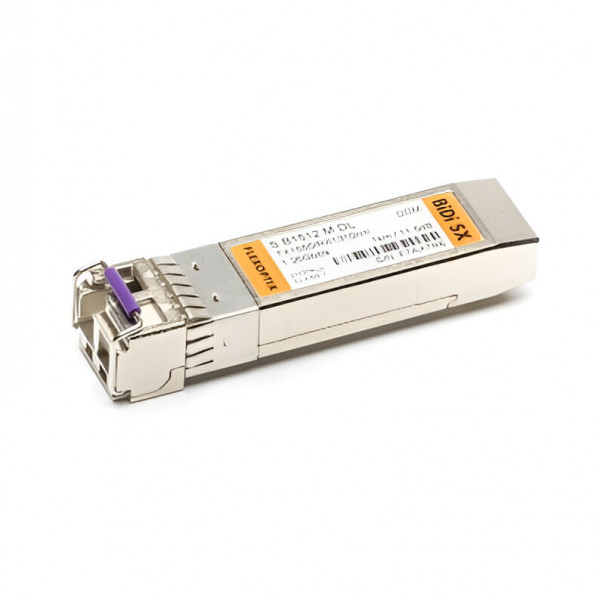

FLEXOPTIX 1G SFP BiDi SX LC; 550 m, ᵀˣ1550 / ᴿˣ1310 nm, Multimode

Be the first to review this product

SKU #S.B1512.M.DL

Universal SFP BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwith by using only one fiber for transmit and receive
Only one LC connector
Supported Data Rates: 1 Gbit/s - 1.2 Gbit/s
Up to 550 m via Multimode OM3 @ 2000MHz fiber (MMF)

Need help selecting the right option for your vendor / hardware?
Request compatibility

AU$55.25 AU$60.78

Confirm stocks / Dispatched from Germany (7 days)

Part Number

S.B1512.M.DL

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP+
Connector	LC
Distance	550 m
Interface	BiDi
Wavelength TX	1550 nm
Wavelength RX	1310 nm
Power Budget (dB)	11.5 dB
Transmit Min.	-9.5 dB
Receive Min.	-21 dB
Transmit Max.	-3 dB
Receive Max. (Receiver Overload)	-3 dB
Extinction Ratio	6 dB
Bandwidth from	1.1 G
Bandwidth to	1.2 G
Laser	FP
Receiver Type	PIN
Wavelength TX Min.	1500nm
Wavelength TX Max.	1580nm
Wavelength RX Min.	1260nm
Wavelength RX Max.	1360nm
Temperature Range	0°C - 70°C
Type of DDM / DOM	Internally calibrated
Networking Protocol	1G Ethernet, 1G Fibre Channel
Type	BiDi SX
Operating Temp. (Min)	0°C
Operating Temp. (Max)	70°C
Vendor Switch Coding	MSA Standard, A10networks, ADTRAN, ADVA, Brocade, Check Point, Ciena (ex. Nortel), D-LINK, Dell, ECI, Edge Core, Enterasys, Extreme, F5 Networks, FibroLAN, Fluke Networks, Force10 / Brocade, Fortinet, Fujitsu, H3C (ex. 3COM), Hirschmann, HP H3C, Huawei, Intel, Juniper, Keymile, KTI Networks, Lynx, Motorola, MRV, Netgear, Nokia Siemens Networks, Palo Alto Networks, Radware, TP-LINK, Transition Networks, Transmode, Ubiquiti Networks
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
