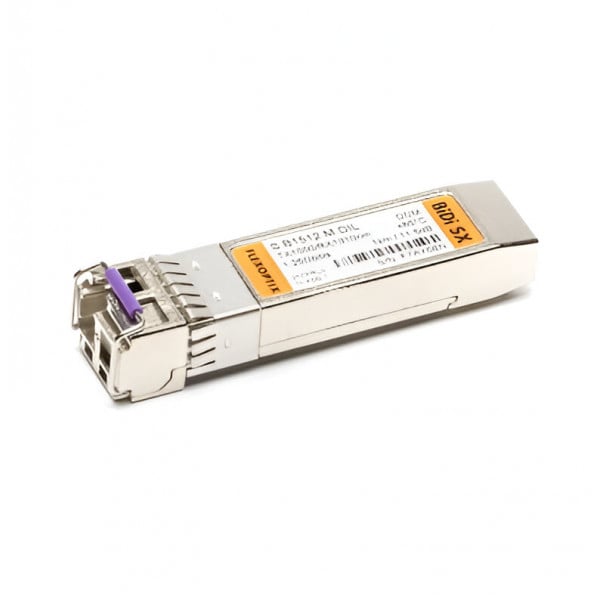

FLEXOPTIX 1G SFP BiDi SX Industrial | 1,000 m, ᵀˣ1550 / ᴿˣ1310 nm, DDM, LC-Simplex, Multimode

SKU #S.B1512.M.DIL
  • Universal SFP BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwidth by using only one fiber for transmit and receive
  • For 1000BASE-SX Ethernet links
  • Supported Data Rates: 1.06 Gbit/s - 1.25 Gbit/s
  • Up to 1 km via Multimode OM3
  • LC-Simplex Connector
  • Operating Temperature from -40&C to 85&C, Digital Diagnostic Monitoring (DDM)
AU$58.63 AU$64.49
Reordering - Contact to confirm availability
Part Number
S.B1512.M.DIL
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP
Connector LC-Simplex UPC
Distance 1 km
Interface BiDi SX
Wavelength TX 1550 nm
Power Budget (dB) 11.5 dB
Extinction Ratio 6 dB
Bandwidth Range 1.06 Gbit/s - 1.25 Gbit/s
Laser FP
Receiver Type PIN
Wavelength RX (Range) 1260 - 1360 nm
Temperature Range -40°C - 85°C
Type of DDM / DOM Yes, internally calibrated
Networking Protocol 1G Fibre Channel, Gigabit Ethernet
Vendor Switch Coding MSA Standard, Alcatel-Lucent Ent., barox, Cisco Systems, Huawei, Nokia (ex. Alcatel-Lucent)
CDR none
Inbuilt FEC No
Receiver Min/Max -21 dBm / -3 dBm (overload)
SGMII No
Transmit Min/Max -9.5 dBm / -3 dBm
Power Consumption 1 W
Modulation NRZ
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
