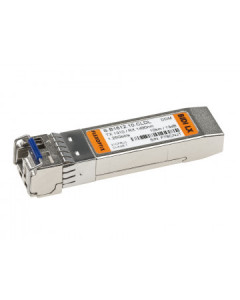

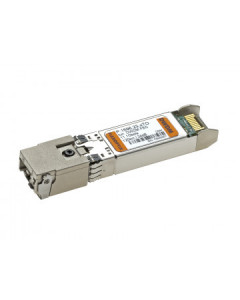

FLEXOPTIX 1G SFP BiDi LX Industrial | 20 km, ᵀˣ1550 / ᴿˣ1310 nm, DDM, SC-Simplex, Singlemode

SKU #S.B1512.20.DI

Universal SFP BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwidth by using only one fiber for transmit and receive
For 1000BASE-LX Ethernet links
Supported Data Rates: 125 Mbit/s - 1.25 Gbit/s
Up to 20 km via Singlemode OS2
SC-Simplex Connector
Operating Temperature from -40&C to 85&C, Digital Diagnostic Monitoring (DDM)

AU$85.70 AU$94.27

Reordering - Contact to confirm availability

Part Number

S.B1512.20.DI

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP
Connector	SC-Simplex PC
Distance	20 km
Interface	BiDi LX
Wavelength TX	1550 nm
Power Budget (dB)	14 dB
Transmit and Dispersion Penalty	1 dB
Extinction Ratio	9 dB
Bandwidth Range	125 Mbit/s - 1.25 Gbit/s
Laser	DFB
Receiver Type	PIN
Wavelength RX (Range)	1260 - 1580 nm
Temperature Range	-40°C - 85°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	Fast Ethernet, 1G Fibre Channel, Gigabit Ethernet
Vendor Switch Coding	MSA Standard, barox, Cisco Systems
CDR	none
Inbuilt FEC	No
Receiver Min/Max	-22 dBm / -3 dBm (overload)
SGMII	No
Transmit Min/Max	-8 dBm / -3 dBm
Power Consumption	1 W
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
