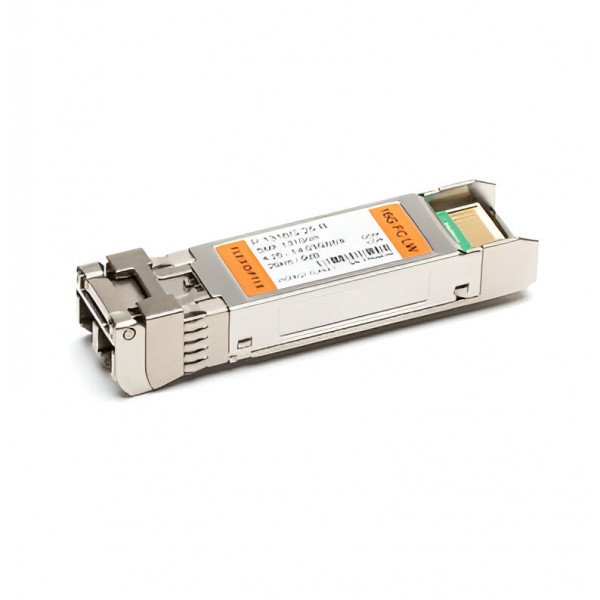

FLEXOPTIX 16G Fibre Channel SFP+ with dual CDR | 25 km, λ1310 nm, LC-Duplex, Singlemode

Be the first to review this product

SKU #P.1316G.25.R

Universal Fibre Channel SFP+ Transceiver
Use FLEXBOX to configure to almost any vendor
Fibre Channel (FC) support for storage area network (SAN) interconnect
Integrated Clock-Data-Recovery (CDR)
Supported Data Rates: 4.25 Gbit/s - 14.03 Gbit/s
Up to 25 km via Singlemode OS2
LC-Duplex Connector

AU$392.61 AU$431.87

Reordering - Contact to confirm availability

Part Number

P.1316G.25.R

Choose Vendor Compatibility

More Information

Reviews

Product Questions

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP+
Connector	LC-Duplex PC
Distance	25 km
Interface	16G FC LW
Wavelength TX	1310 nm
Power Budget (dB)	9 dB
Transmit and Dispersion Penalty	4.4 dB
Bandwidth Range	4.25 Gbit/s - 14.03 Gbit/s
Laser	DFB
Receiver Type	PIN
Wavelength RX (Range)	1260 - 1370 nm
Temperature Range	0°C - 70°C
Type of DDM / DOM	Yes, internally calibrated
Networking Protocol	16G Fibre Channel, 4G Fibre Channel, 8G Fibre Channel
Vendor Switch Coding	MSA Standard, Brocade, Cisco Systems, HP Storage (B-Series), IBM Storage
CDR	TX and RX
Inbuilt FEC	No
Receiver Min/Max	-12 dBm / 2 dBm (overload)
SGMII	No
Transmit Min/Max	-3 dBm / 2 dBm
Power Consumption	1.8 W
Modulation	NRZ
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
