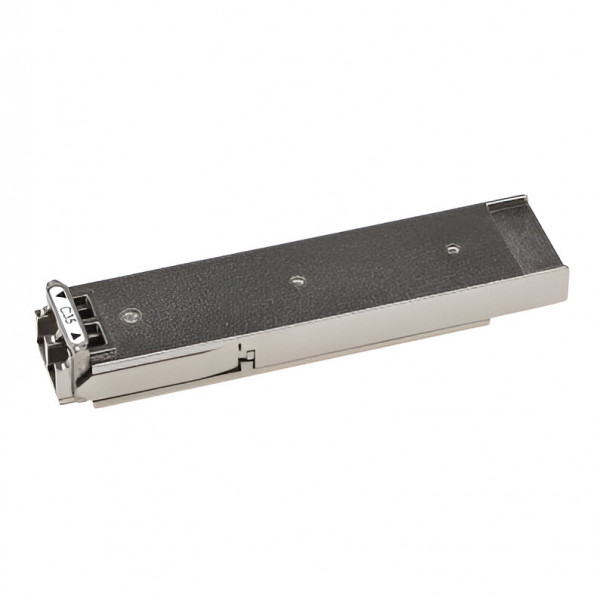

FLEXOPTIX 10G XFP DWDM ZR WITH DUAL CDR EXTENDED | 80 km / 23 dB, 100 GHz Grid - C-Band, LC-Duplex
SKU #X.1696.23.yy.I
- Universal XFP Transceiver - 100 GHz Grid - C-Band
- Use FLEXBOX to configure to almost any vendor
- DWDM for multiple applications over one duplex fiber
- For 10GBASE-ZR Ethernet links
- Supported Data Rates: 9.95 Gbit/s - 11.1 Gbit/s with dual CDR
- Powerbudget of 23 dB for up to 80 km using an OS2 ITU-T G.652 fiber
- Operating Temperature from -20°C to 75°C
- Need help selecting the right option for your vendor / hardware?
Request compatibility
As low as
AU$885.39
AU$973.93
Reordering - Contact to confirm availability
Part Number
X.1696.23.yy.I
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | XFP |
| Connector | LC |
| Distance | 80 km |
| Interface | DWDM |
| Wavelength RX | 1563.86 nm |
| Power Budget (dB) | 23 dB |
| Transmit Min. | -1 dB |
| Receive Min. | -24 dB |
| Transmit Max. | 4 dB |
| Receive Max. (Receiver Overload) | -7 dB |
| Transmit and Dispersion Penalty | 2 dB |
| Extinction Ratio | 8.2 dB |
| Bandwidth from | 8.5 G |
| Bandwidth to | 11.1 G |
| Laser | EML |
| Receiver Type | APD |
| Wavelength TX Min. | 1563.76nm |
| Wavelength TX Max. | 1563.96nm |
| Wavelength RX Max. | 1620nm |
| Type of DDM / DOM | Internally calibrated |
| Networking Protocol | 10G Ethernet |
| Type | DWDM ZR |
| Operating Temp. (Min) | -20°C |
| Operating Temp. (Max) | 75°C |
| Temperature Range. | Extended Range |
| Vendor Switch Coding | MSA Standard |
| Industry | Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks |
| Applications | Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking |
| Warranty | 1 Year |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team, Engineered to FLEXOPTIX exacting standards You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires |
