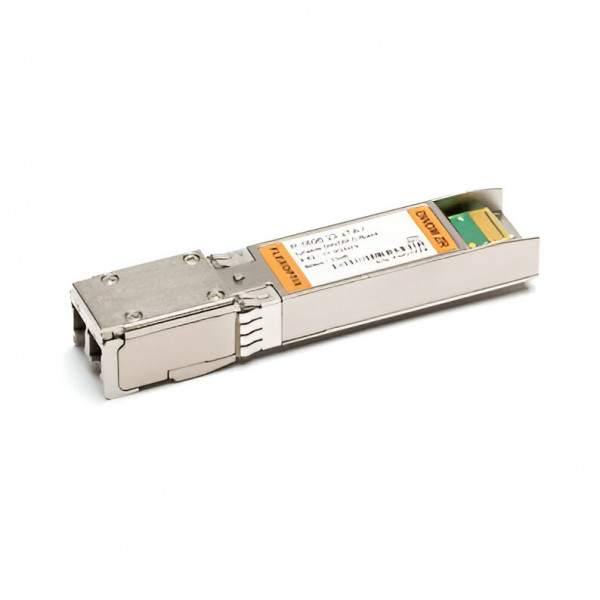

FLEXOPTIX 10G SFP+ Tunable DWDM ZR | 80 km, 48 Channels, 100GHz Grid, C-Band, LC-Duplex, Singlemode

SKU #P.1696.23.YTA.I
  • Universal tunable SFP+ Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • For 10GBASE-ZR Ethernet links
  • Set channels using your FLEXBOX - more on our blog
  • Reduce spare part stock for your DWDM network
  • Auto-Tunable feature enabled
  • Supported Data Rates: 1.25 Gbit/s - 11.3 Gbit/s
  • Up to 80 km via Singlemode OS2
  • LC-Duplex Connector
  • Operating Temperature from -40&C to 85&C
AU$3,337.54 AU$3,671.29
Reordering - Contact to confirm availability
Part Number
P.1696.23.YTA.I
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP+
Connector LC-Duplex PC
Distance 80 km
Interface ZR
Wavelength TX tunable DWDM 100GHz
Power Budget (dB) 23 dB
Transmit and Dispersion Penalty 3 dB
Extinction Ratio 8.2 dB
Laser ILMZ
Receiver Type APD
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard
Modulation NRZ
CDR none
Inbuilt FEC No
Receiver Min/Max -24 dBm / -7 dBm (overload)
SGMII No
Transmit Min/Max -1 dBm / 3 dBm
Wavelength RX (Range) 1525 - 1575 nm
Power Consumption 2.3 W
Bandwidth Range 1.25 Gbit/s - 11.3 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 10G Ethernet
Temperature Range -40°C - 85°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
Write Your Own Review
You're reviewing:FLEXOPTIX 10G SFP+ Tunable DWDM ZR | 80 km, 48 Channels, 100GHz Grid, C-Band, LC-Duplex, Singlemode
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series
  1. FLEXOPTIX STM1 SFP BiDi FX LC; 2 km, ᵀˣ1550 / ᴿˣ1310 nm, Multimode
    FLEXOPTIX STM1 SFP BiDi FX LC; 2 km, ᵀˣ1550 / ᴿˣ1310 nm, Multimode
    AU$49.96 AU$54.96
  2. FLEXOPTIX 10G SFP+ DWDM ER with CDR | 40 km, 100 Ghz Grid - C-Band, Singlemode, LC
    FLEXOPTIX 10G SFP+ DWDM ER with CDR | 40 km, 100 Ghz Grid - C-Band, Singlemode, LC
    As low as AU$811.39 AU$892.53
  3. FLEXOPTIX 100G QSFP28 BiDi ER with dual CDR | 40 km, ᵀˣ1305 / ᴿˣ1309 nm, LC-Simplex, Singlemode
    FLEXOPTIX 100G QSFP28 BiDi ER with dual CDR | 40 km, ᵀˣ1305 / ᴿˣ1309 nm, LC-Simplex, Singlemode
    AU$2,869.06 AU$3,155.97
  4. FLEXOPTIX 2x 100G QSFP-DD LR4 with dual CDR | 10 km, λ1296-1309 nm, CS-Duplex, Singlemode
    FLEXOPTIX 2x 100G QSFP-DD LR4 with dual CDR | 10 km, λ1296-1309 nm, CS-Duplex, Singlemode
    AU$3,695.98 AU$4,065.58
  5. FLEXOPTIX 100M ETH SFP BiDi SGMII LX LC; 10 km, ᵀˣ1310 / ᴿˣ1550 nm, Singlemode
    FLEXOPTIX 100M ETH SFP BiDi SGMII LX LC; 10 km, ᵀˣ1310 / ᴿˣ1550 nm, Singlemode
    AU$162.28 AU$178.51
Related Products
  1. FLEXOPTIX STM4 SFP BiDi LC; 100 km, ᵀˣ1510 / ᴿˣ1590 nm, Singlemode
    FLEXOPTIX STM4 SFP BiDi LC; 100 km, ᵀˣ1510 / ᴿˣ1590 nm, Singlemode
    AU$270.46 AU$297.51
  2. FLEXOPTIX 10G XFP LR Industrial with dual CDR | 20 km, λ1270 nm, LC-Duplex, Singlemode
    FLEXOPTIX 10G XFP LR Industrial with dual CDR | 20 km, λ1270 nm, LC-Duplex, Singlemode
    AU$193.67 AU$213.04

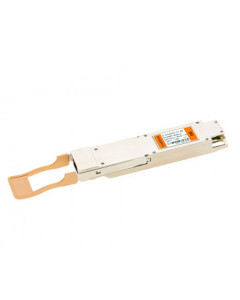

  3. FLEXOPTIX 400G OSFP SR8 with dual CDR | 100 m, 8x λ850 nm, MTP/MPO, Multimode
    FLEXOPTIX 400G OSFP SR8 with dual CDR | 100 m, 8x λ850 nm, MTP/MPO, Multimode
    AU$1,310.54 AU$1,441.59

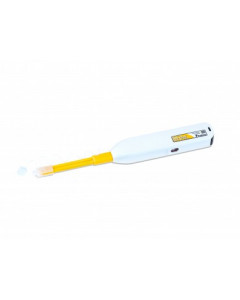

  4. FLEXOPTIX LWL Fiber Cleaner SN
