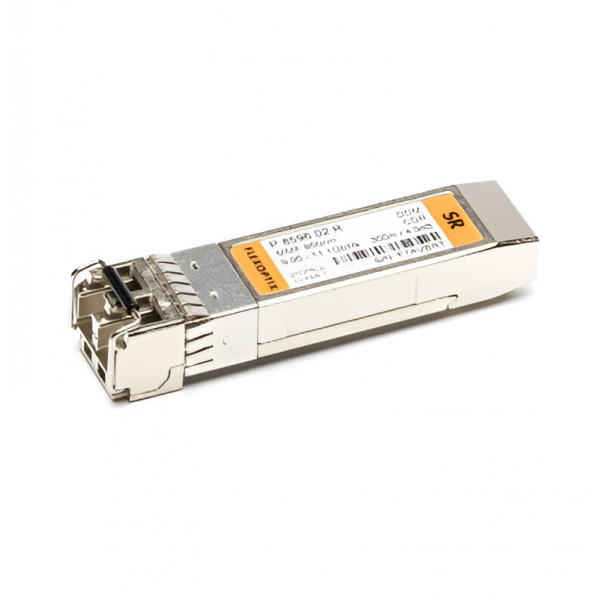

FLEXOPTIX 10G SFP+ SR with CDR; Multimode, λ 850 nm, 300 m, LC

SKU #P.8596.02.R
  • Universal SFP+ Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Supported Data Rates: 10 Gbit/s - 11.1 Gbit/s
  • Up to 300 m via Multimode OM3 @ 2000MHz fiber (MMF)
AU$110.38 AU$121.42
Reordering - Contact to confirm availability
Part Number
P.8596.02.R
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP
Connector LC
Distance 300 m
Interface Multimode
Wavelength TX 850 nm
Wavelength RX 850 nm
Power Budget (dB) 5.1 dB
Transmit Min. -6 dB
Receive Min. -11.1 dB
Transmit Max. -1 dB
Receive Max. (Receiver Overload) -1 dB
Extinction Ratio 5 dB
Bandwidth from 10.0 G
Bandwidth to 11.1 G
Laser VCSEL
Receiver Type PIN
Wavelength TX Min. 840nm
Wavelength TX Max. 860nm
Wavelength RX Min. 840nm
Wavelength RX Max. 860nm
Temperature Range 0°C - 70°C
Type of DDM / DOM Internally calibrated
Networking Protocol 10G Ethernet, STM64
Type SR
Operating Temp. (Min) 0°C
Operating Temp. (Max) 70°C
Vendor Switch Coding MSA Standard, A10networks, ADVA, Netgear, Palo Alto Networks
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team,
Engineered to FLEXOPTIX exacting standards
You can rely on FLEXOPTIX modules to achieve the real dynamic range, sensitivity, crosstalk performance and genuine quality your system requires
Write Your Own Review
You're reviewing:FLEXOPTIX 10G SFP+ SR with CDR; Multimode, λ 850 nm, 300 m, LC
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
In This Series
  1. FLEXOPTIX 1G SFP DWDM ZX+ | 100 km / 32 dB, 100 GHz Grid - C-Band, DDM, LC-Duplex
    FLEXOPTIX 1G SFP DWDM ZX+ | 100 km / 32 dB, 100 GHz Grid - C-Band, DDM, LC-Duplex
    As low as AU$1,007.83 AU$1,108.61

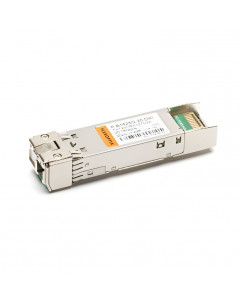

  2. FLEXOPTIX 25G SFP28 BiDi LR Industrial with dual CDR | 20 km, ᵀˣ1331 / ᴿˣ1271 nm, LC-Simplex, Singlemode
