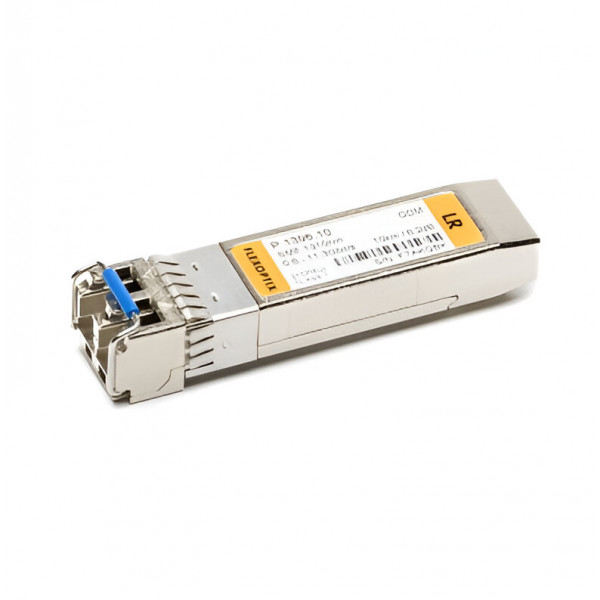

FLEXOPTIX 10G SFP+ LR; 10 km, λ 1310 nm, Singlemode, LC
SKU #P.1396.10
- Universal SFP+ Transceiver
- Use FLEXBOX to configure to almost any vendor
- For 10GBASE-LR Ethernet links
- Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
- Up to 10 km via Singlemode OS2
- LC-Duplex Connector
AU$72.57
AU$79.83
Confirm stocks / Dispatched from Germany (7 days)
Part Number
P.1396.10
| Manufacturer | FLEXOPTIX |
|---|---|
| Product Series | FLEXOPTIX Universal Transceivers |
| Product Type | Transceivers |
| Form Factor | SFP+ |
| Connector | LC-Duplex PC |
| Interface | Singlemode |
| Power Budget (dB) | 6.2 dB |
| Transmit and Dispersion Penalty | 3.2 dB |
| Extinction Ratio | 3.5 dB10111111 |
| Bandwidth Range | 600 Mbit/s - 11.3 Gbit/s |
| Laser | DFB |
| Receiver Type | PIN |
| Wavelength RX (Range) | 1260 - 1565 nm |
| Wavelength RX (Typical) | 1310 nm |
| Wavelength TX (Range) | 1270 - 1355 nm |
| Wavelength TX (Typical) | 1310 nm |
| Temperature Range | 0°C - 70°C |
| Type of DDM / DOM | Yes, internally calibrated |
| Networking Protocol | 10G Ethernet, 1G Ethernet, 10G Fibre Channel, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373 CPRI, LTE 9.830 CPRI |
| CDR | none |
| Inbuilt FEC | No |
| Receiver Min/Max | -14.4 dBm / 0.5 dBm (overload) @10G |
| SGMII | No |
| Transmit Min/Max | -8.2 dBm / 0.5 dBm |
| Power Consumption | 1 W |
| Modulation | NRZ @10G |
| Warranty Notes | AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team |
