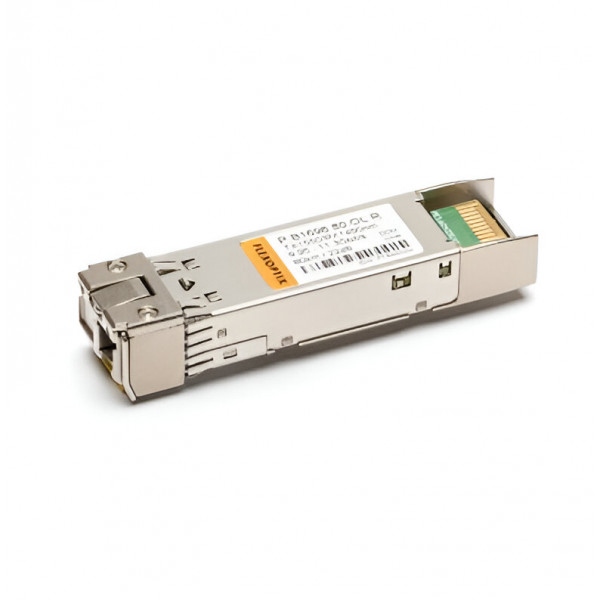

FLEXOPTIX 10G SFP+ BiDi ZR with dual CDR | 80 km, ᵀˣ1550 / ᴿˣ1490 nm, LC-Simplex, Singlemode

SKU #P.B1696.80.OL.R
  • Universal SFP+ BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwidth by using only one fiber for transmit and receive
  • For 10GBASE-ZR Ethernet links
  • Integrated Clock-Data-Recovery (CDR)
  • Supported Data Rates: 9.83 Gbit/s - 11.3 Gbit/s
  • Up to 80 km via Singlemode OS2
  • LC-Simplex Connector
AU$1,229.48 AU$1,352.43
Confirm stocks / Dispatched from Germany (7 days)
Part Number
P.B1696.80.OL.R
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP+
Connector LC-Simplex UPC
Distance 80 km
Interface BiDi ZR
Wavelength TX 1550 nm
Power Budget (dB) 19 dB
Extinction Ratio 7.5 dB
Laser EML
Receiver Type APD
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard, Juniper
Modulation NRZ
CDR TX and RX
Inbuilt FEC No
Receiver Min/Max -20 dBm / -6 dBm (overload)
SGMII No
Transmit Min/Max -1 dBm / 4 dBm
Wavelength RX (Range) 1480 - 1500 nm
Power Consumption 2 W
Bandwidth Range 9.83 Gbit/s - 11.3 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks, Financial Institutions, Government and Defence Communications, Aerospace and Defence, Broadcast, Mining, Off-shore and Remote, Security, Transportation, Utilities
Applications GPON (Gigabit Passive Optical Network), Last Mile, LAN Installation, Network Infrastructure, Network Core and Edge
Networking Protocol 10G Ethernet, LTE 9.830G CPRI
Temperature Range 0°C - 70°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
