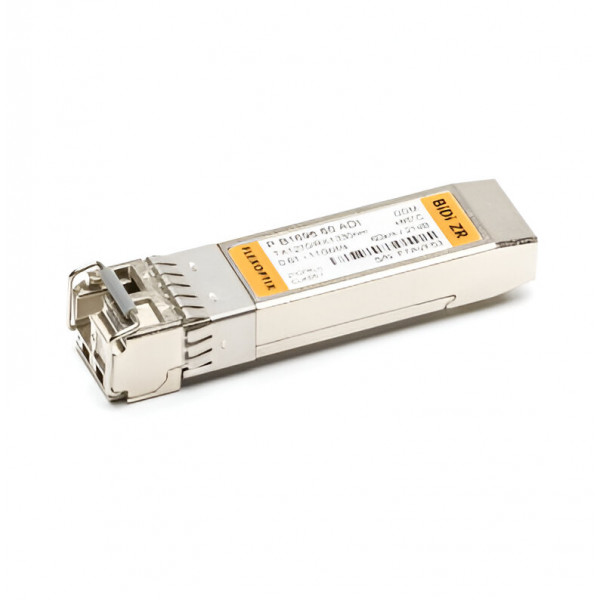

FLEXOPTIX 10G SFP+ BiDi ZR Industrial | 60 km, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Singlemode

SKU #P.B1696.60.ADI

Universal SFP+ BiDi Transceiver
Use FLEXBOX to configure to almost any vendor
Double your bandwidth by using only one fiber for transmit and receive
For 10GBASE-ZR Ethernet links
Supported Data Rates: 614 Mbit/s - 11 Gbit/s
Up to 60 km via Singlemode OS2
LC-Simplex Connector
Operating Temperature from -40&C to 85&C

AU$285.13 AU$313.64

Reordering - Contact to confirm availability

Part Number

P.B1696.60.ADI

More Information
Manufacturer	FLEXOPTIX
Product Series	FLEXOPTIX Universal Transceivers
Product Type	Transceivers
Form Factor	SFP+
Connector	LC-Simplex UPC
Distance	60 km
Interface	BiDi ZR
Wavelength TX	1270 nm
Power Budget (dB)	21 dB
Transmit and Dispersion Penalty	2 dB
Extinction Ratio	3.5 dB
Laser	DFB
Receiver Type	APD
Type of DDM / DOM	Yes, internally calibrated
Vendor Switch Coding	MSA Standard, Nokia (ex. Alcatel-Lucent)
Modulation	NRZ
CDR	none
Inbuilt FEC	No
Receiver Min/Max	-20 dBm / -6 dBm (overload)
SGMII	No
Transmit Min/Max	1 dBm / 6 dBm
Wavelength RX (Range)	1320 - 1340 nm
Power Consumption	1.5 W
Bandwidth Range	614 Mbit/s - 11 Gbit/s
Industry	Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications	Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol	10G Ethernet, 1G Fibre Channel, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI, Gigabit Ethernet, 10G FC
Temperature Range	-40°C - 85°C
Standard Package Contains
Warranty	1 Year
Warranty Notes	AusOptic Genuine Product Guarantee Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
