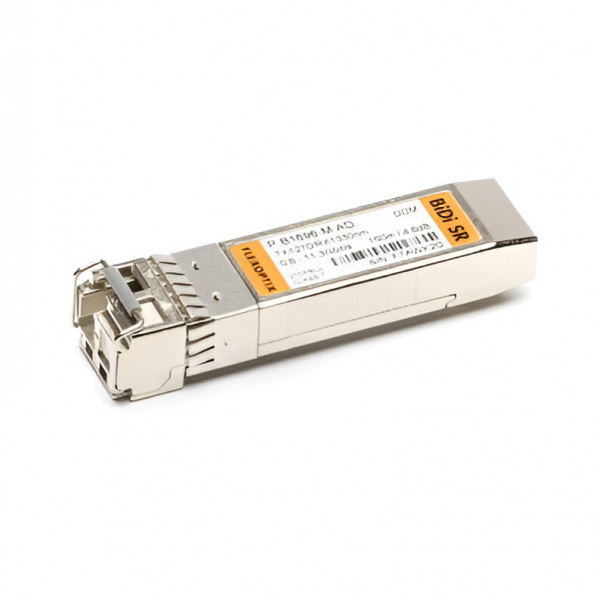

FLEXOPTIX 10G SFP+ BiDi SR | 150 m, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Multimode

FLEXOPTIX
Be the first to review this product
SKU #P.B1696.M.AD
  • Universal SFP+ BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwith by using only one fiber for transmit and receive
  • For 10GBASE-SR Ethernet links
  • Supported Data Rates: 600 Mbit/s - 11.3 Gbit/s
  • Up to 150 m via Multimode OM3
  • LC-Simplex Connector
AU$208.95 AU$229.85
Reordering - Contact to confirm availability
Part Number
P.B1696.M.AD
Add to Wish List Add to Compare
Email
More Information
Product Questions
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP+
Connector LC-Simplex UPC
Distance 150 m
Interface BiDi SR
Wavelength TX 1270 nm
Power Budget (dB) 4.6 dB
Extinction Ratio 3.5 dB
Laser DFB
Receiver Type PIN
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard, Aruba Networks (ex. HP Network), Intel
Modulation NRZ
CDR none
Inbuilt FEC No
Receiver Min/Max -11.1 dBm / 0.5 dBm (overload)
SGMII No
Transmit Min/Max -6.5 dBm / 0.5 dBm
Wavelength RX (Range) 1320 - 1340 nm
Power Consumption 1.5 W
Bandwidth Range 600 Mbit/s - 11.3 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 10G Ethernet, 1G Fibre Channel, 2G Fibre Channel, 4G Fibre Channel, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI, Gigabit Ethernet, 10G FC, LTE 24.33G CPRI
Temperature Range 0°C - 70°C
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
