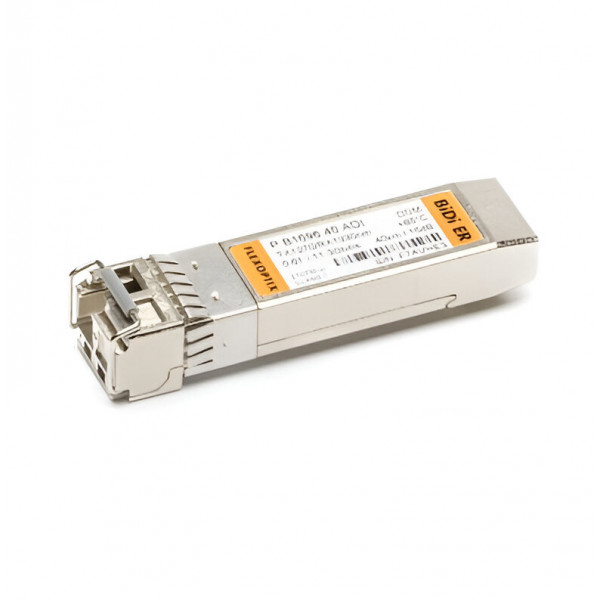

FLEXOPTIX 10G SFP+ BiDi ER Industrial | 40 km, ᵀˣ1270 / ᴿˣ1330 nm, LC-Simplex, Singlemode

SKU #P.B1696.40.ADI
  • Universal SFP+ BiDi Transceiver
  • Use FLEXBOX to configure to almost any vendor
  • Double your bandwith by using only one fiber for transmit and receive
  • For 10GBASE-ER Ethernet links
  • Supported Data Rates: 614 Mbit/s - 11.3 Gbit/s
  • Up to 40 km via Singlemode OS2
  • LC-Simplex Connector
  • Operating Temperature from -40&C to 85&C
AU$173.00 AU$190.30
Reordering - Contact to confirm availability
Part Number
P.B1696.40.ADI
More Information
Manufacturer FLEXOPTIX
Product Series FLEXOPTIX Universal Transceivers
Product Type Transceivers
Form Factor SFP+
Connector LC-Simplex UPC
Distance 40 km
Interface BiDi ER
Wavelength TX 1270 nm
Power Budget (dB) 16 dB
Transmit and Dispersion Penalty 2 dB
Extinction Ratio 3.5 dB
Laser DFB
Receiver Type PIN
Type of DDM / DOM Yes, internally calibrated
Vendor Switch Coding MSA Standard, Cisco Systems, Huawei, Juniper, MikroTik, Nokia (ex. Alcatel-Lucent)
Modulation NRZ
CDR none
Inbuilt FEC No
Receiver Min/Max -15 dBm / 0.5 dBm (overload)
SGMII No
Transmit Min/Max 1 dBm / 5 dBm
Wavelength RX (Range) 1320 - 1340 nm
Power Consumption 1.5 W
Bandwidth Range 614 Mbit/s - 11.3 Gbit/s
Industry Telecommunications, Carriers, Service and Content Providers, Campus Networks, Data Centres, Enterprise Networks
Applications Data Centre Connectivity, GPON (Gigabit Passive Optical Network), LAN Installation, Network Core and Edge, SFP/Transceiver Vendor Programming, RF and microwave photonics, Carriers, Service and Content Providers, Enterprise Networking
Networking Protocol 10G Ethernet, 8G Fibre Channel, LTE 0.614G CPRI, LTE 0.768G OBSAI, LTE 1.22G CPRI, LTE 1.536G OBSAI, LTE 2.458G CPRI, LTE 3.072G OBSAI, LTE 4.915G CPRI, LTE 6.144G CPRI, LTE 6.144G OBSAI, LTE 7.373G CPRI, LTE 9.830G CPRI, Gigabit Ethernet, 10G FC
Temperature Range -40°C - 85°C
Standard Package Contains
Warranty 1 Year
Warranty Notes AusOptic Genuine Product Guarantee
Authorised distributor, benefit from manufacturer-backed, local warranty coverage, genuine parts, and our experienced local support team
